3835 AlumaMill End Mill
Our AlumaMill high-performance end mill excels in aggressive material removal rates in high si aluminum.

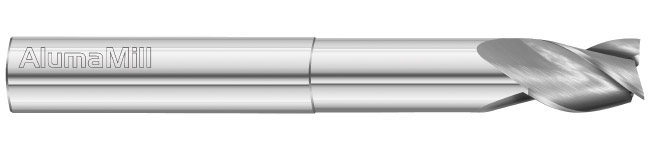

The 3835 AlumaMill is a 3-flute, high-performance end mill designed for high- and low-silicon aluminum, composites, plastics, and wood. Built for aggressive material removal in high-silicon aluminum, its highly polished cutting edges help prevent material buildup, while its unique cylindrical margin supports smooth, consistent wall finishes.

Filter by diameter, length, coating and more — then check live pricing.
Explore this seriesResources
Access the information you need to put the AlumaMill to work.
Every 3835 EDP
| EDP | Diameter | Length | Flute length | Overall length | Coating | Open |
|---|---|---|---|---|---|---|
| 38366 | 1/8" | Stub | 1/4" | 1-1/2" | ||
| 38346 | 1/8" | Standard | 1/2" | 1-1/2" | ||
| 38131 | 1/8" | Standard | 1/2" | 1-1/2" | ||
| 38368 | 3/16" | Stub | 5/16" | 2" | ||
| 38348 | 3/16" | Standard | 5/8" | 2" | ||
| 38132 | 3/16" | Standard | 5/8" | 2" | ||
| 38370 | 1/4" | Stub | 1/2" | 2" | ||
| 38350 | 1/4" | Standard | 1" | 2-1/2" | ||
| 38133 | 1/4" | Standard | 1" | 2-1/2" | ||
| 38386 | 1/4" | Extra-Long | 2" | 4" | ||
| 38372 | 5/16" | Stub | 1/2" | 2-1/2" | ||
| 38352 | 5/16" | Standard | 1" | 2-1/2" | ||
| 38374 | 3/8" | Stub | 5/8" | 2-1/2" | ||
| 38145 | 3/8" | Stub | 5/8" | 2-1/2" | ||
| 38354 | 3/8" | Standard | 1" | 2-1/2" | ||
| 38135 | 3/8" | Standard | 1" | 2-1/2" | ||
| 38390 | 3/8" | Extra-Long | 2" | 4" | ||
| 38356 | 7/16" | Standard | 1" | 2-3/4" | ||
| 38378 | 1/2" | Stub | 3/4" | 3" | ||
| 38147 | 1/2" | Stub | 3/4" | 3" | ||
| 38137 | 1/2" | Standard | 1-1/4" | 3" | ||
| 38358 | 1/2" | Standard | 1-1/4" | 3" | ||
| 38161 | 1/2" | Extra-Long | 2" | 4" | ||
| 38394 | 1/2" | Extra-Long | 2" | 4" | ||
| 38395 | 1/2" | Extra-Long | 3-1/4" | 6" | ||
| 38380 | 5/8" | Stub | 1" | 3-1/2" | ||
| 38360 | 5/8" | Standard | 1-5/8" | 3-1/2" | ||
| 38382 | 3/4" | Stub | 1" | 4" | ||
| 38362 | 3/4" | Standard | 1-3/4" | 4" | ||
| 38139 | 3/4" | Standard | 1-3/4" | 4" | ||
| 38398 | 3/4" | Extra-Long | 2-1/2" | 5" | ||
| 38399 | 3/4" | Extra-Long | 3-1/4" | 6" | ||
| 38364 | 1" | Standard | 1-3/4" | 4" | ||
| 38215 | 1" | Extra-Long | 2-1/2" | 5" | ||
| 38400 | 1" | Extra-Long | 2-1/2" | 5" | ||
| 38402 | 1" | Extra-Long | 3-1/4" | 6" |
Best Applications
How the AlumaMill maps across ISO-513 material groups and machining operations.
Choosing Between the AlumaMill & AlumaMill
The 3835 AlumaMill is designed for aggressive material removal in high-silicon aluminum, composites, plastics, and wood. Its wiper flat helps produce smooth, consistent floor finishes. For applications requiring a ball or corner-radius end—or greater chip clearance from a steeper helix—consider the 3825 AlumaMill. Its 2-flute, 45° helix geometry provides broader end-style flexibility in place of the dedicated wiper flat.
| Feature | 3835 AlumaMill | 3825 AlumaMill |
|---|---|---|
| Flutes | 3-flute | 2-flute |
| Helix Angle | 36.00° | 45.00° |
| End Style | Square only | Ball, Corner Radius, Square |
| Finish feature | Wiper flat for improved floor finish | Standard geometry, no wiper flat |
Frequently Asked Questions
It's designed for Composites, High Si Aluminum > 10%, Low Si Aluminum < 10%, Plastics, and Wood.
It's stocked Uncoated with FC19 coating. Our FC19 coating is engineered for smooth, frictionless chip evacuation. Outstanding self-lubricating properties make it ideal for aluminum containing less than 10% silicon and titanium alloys.
It's available in Square.
The 3835 AlumaMill is a 3-flute tool.
The 3835 AlumaMill has a helix angle of 36.00°.
The 3835 AlumaMill holds a shank tolerance of h6 and a cutter tolerance of +.0000"/-.0005" | +0.000mm/-0.013mm.
