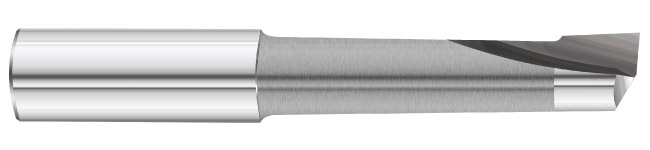

The 2400 Boring Tool is a single-flute, general-purpose tool featuring a straight flute and tapered clearance neck. This design improves rigidity and reduces deflection for stable, accurate boring performance. The 2400 is stocked uncoated.

Key Features

Single, Straight Flute

Tapered Clearance Neck improves rigidity with less deflection.

The Boring Tool Lineup/ 12 tools

Varies by SizePick any size in range

Cutting Diameter

0.0600"TO0.3600"

Shank Diameter

0.1250"TO0.3750"

Overall Length

1.5000"TO2.5000"

Max Depth of Hole

0.1875"TO1.5000"

Tool Number

F-0 F-00 F-002 F-1 F-2 F-3 F-4 F-5 F-6 F-7+2 more

Consistent Across the SeriesSame on every tool

GradeGeneral Purpose

Flutes1

Spiral DirectionStraight

Shank Toleranceh6

Cutting Tolerance.0000"/-.004"

CoatingUncoated

Filter by diameter, length, coating and more — then check live pricing.

Explore this series

Resources

Access the information you need to put the Boring Tool to work.

PDF · Speeds & Feeds

2400 - Boring Tool S&F

Download

2400 Boring Tool

80th Edition Catalog

Download

Every 2400 EDP

12 EDPs in the Boring Tool

Pick one for live stock & your price

EDP	Diameter	Overall length
24012	0.0600"	1-1/2"
24010	0.0800"	1-1/2"
24000	0.0900"	1-1/2"
24001	0.1200"	1-1/2"
24002	0.1500"	2"
24003	0.1800"	2"
24004	0.2100"	2-1/2"
24005	0.2400"	2-1/2"
24006	0.2700"	2-1/2"
24007	0.3000"	2-1/2"
24008	0.3300"	2-1/2"
24009	0.3600"	2-1/2"
