3833AlumaMill G3End Mill

3833 AlumaMill G3 End Mill

Our AlumaMill G3 high-performance end mill excels in roughing, finishing, plunging, and ramping aluminum and brass & copper.

NHigh Si Aluminum > 10%OComposites3 Flute
AlumaMill G3

The 3833 AlumaMill G3 is a 3-flute, high-performance end mill designed for high- and low-silicon aluminum, composites, plastics, and wood. Built for aggressive roughing and finishing in aluminum and other non-ferrous materials, its optimized flute shape and relief form support consistent wall finishes, while its unique wiper geometry helps produce smooth floor finishes.

Key Features
01
Cylindrical Land provides a smoother finish and dampens vibration in non-ferrous applications.
02
Wiper Flat provides an excellent floor finish in non-ferrous materials.

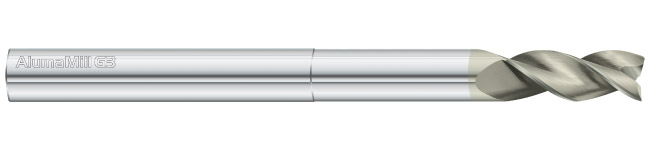

3833 AlumaMill G3 full length
03
Polish provides a smoother edge to prevent material build-up.
The AlumaMill G3 Lineup/ 326 tools
Varies by Size
Cutting Diameter
0.1181"TO1.0000"
Shank Diameter
0.1181"TO1.0000"
Neck Diameter
0.2262"TO0.9700"
Flute Length
0.2362"TO4.1250"
Overall Length
1.4961"TO7.0000"
Radius
0.0118"TO0.1200"
Reach
1.9685"TO3.5039"
Consistent Across the Series
GradeHigh Performance
Flutes3
Spiral DirectionRight Hand Spiral
Helix Angle37.50°
Cutting TypeCenter
Shank Toleranceh6
Cutting Tolerance+.0000"/-.0005"
Built to CutNHigh Si Aluminum > 10%OComposites

Filter by diameter, length, coating and more — then check live pricing.

Explore this series

Resources

Access the information you need to put the AlumaMill G3 to work.

Every 3833 EDP

326 EDPs in the AlumaMill G3
EDPDiameterLengthFlute lengthOverall lengthOpen
271541/8"Stub1/4"1-1/2"
271581/8"Standard1/2"2"
271621/8"Standard3/4"2"
271873/16"Standard3/8"2"
272371/4"Stub1/2"2"
272431/4"Standard1/2"2-1/2"
272491/4"Standard3/4"2-1/2"
272551/4"Standard1"2-1/2"
272611/4"Standard1-1/4"3"
272671/4"Extra-Long2"4"
272945/16"Stub1/2"2-1/2"
272935/16"Stub1/2"2-1/2"
273513/8"Stub1/2"2-1/2"
273593/8"Standard1"2-1/2"
273673/8"Standard1"3"
271193/8"Extra-Long1-1/2"4"
273753/8"Extra-Long2"4"
274347/16"Extra-Long2"4"
274337/16"Extra-Long2"4"
274791/2"Stub5/8"3"
275291/2"Standard1"3"
275371/2"Standard1-1/4"3"
275491/2"Extra-Long2"4"
275621/2"Extra-Long2-1/2"5"
275611/2"Extra-Long2-1/2"5"
275741/2"Extra-Long3-1/4"6"
275731/2"Extra-Long3-1/4"6"
276225/8"Standard1-1/4"3-1/2"
276315/8"Standard1-5/8"3-1/2"
277073/4"Stub1"4"
277373/4"Standard1-3/4"4"
277473/4"Extra-Long2-1/2"5"
277573/4"Extra-Long3-1/4"6"
278951"Standard1-3/4"4"
279051"Extra-Long2-1/2"5"
279261"Extra-Long4-1/8"7"
EDPDiameterLengthFlute lengthOverall lengthOpen
271403 mmStub6 mm38 mm
271443 mmStandard12 mm50 mm
271684 mmStub8 mm50 mm
271724 mmStandard12 mm50 mm
272015 mmStub13 mm51 mm
272075 mmStandard20 mm64 mm
272196 mmLong Reach20 mm100 mm
272256 mmStandard25 mm64 mm
272316 mmExtra-Long50 mm100 mm
273318 mmLong Reach20 mm100 mm
273378 mmStandard25 mm64 mm
273438 mmExtra-Long50 mm100 mm
2740110 mmStandard26 mm64 mm
2739310 mmLong Reach26 mm100 mm
2740910 mmExtra-Long50 mm100 mm
2744312 mmStub20 mm76 mm
2745112 mmLong Reach25 mm100 mm
2745912 mmStandard30 mm84 mm
2746712 mmExtra-Long50 mm100 mm
2766116 mmStub30 mm89 mm
2767316 mmLong Reach30 mm150 mm
2768516 mmStandard41 mm89 mm
2769716 mmExtra-Long63 mm150 mm
EDPDiameterLengthFlute lengthOverall lengthRadiusOpen
271521/8"Standard1/4"1-1/2"0.0150"
271561/8"Standard1/2"2"0.0150"
271601/8"Standard3/4"2"0.0150"
271803/16"Standard5/16"2"0.0300"
271893/16"Standard5/8"2"0.0150"
271913/16"Standard5/8"2"0.0150"
271903/16"Standard5/8"2"0.0300"
272331/4"Standard1/2"2"0.0150"
272451/4"Standard3/4"2-1/2"0.0150"
272471/4"Standard3/4"2-1/2"0.0300"
272531/4"Standard1"2-1/2"0.0300"
272591/4"Standard1-1/4"3"0.0300"
272631/4"Extra-Long2"4"0.0150"
272651/4"Extra-Long2"4"0.0300"
273105/16"Standard1-1/4"3"0.0300"
273135/16"Extra-Long1-1/4"4"0.0150"
273155/16"Extra-Long1-1/4"4"0.0300"
273453/8"Standard1/2"2-1/2"0.0150"
273473/8"Standard1/2"2-1/2"0.0300"
273533/8"Standard1"2-1/2"0.0150"
273553/8"Standard1"2-1/2"0.0300"
273563/8"Standard1"2-1/2"0.0300"
273573/8"Standard1"2-1/2"0.0600"
273613/8"Standard1"3"0.0150"
273633/8"Standard1"3"0.0300"
273653/8"Standard1"3"0.0600"
273713/8"Extra-Long2"4"0.0300"
273733/8"Extra-Long2"4"0.0600"
274297/16"Extra-Long2"4"0.0300"
274307/16"Extra-Long2"4"0.0300"
274691/2"Standard5/8"3"0.0150"
274701/2"Stub5/8"3"0.0150"
274721/2"Standard5/8"3"0.0300"
274711/2"Standard5/8"3"0.0300"
274751/2"Standard5/8"3"0.0900"
274771/2"Standard5/8"3"0.1200"
274821/2"Long Reach5/8"4"0.0150"
274841/2"Long Reach5/8"4"0.0300"
274861/2"Long Reach5/8"4"0.0600"
274901/2"Long Reach5/8"4"0.1200"
274971/2"Long Reach5/8"6"0.0300"
274991/2"Long Reach5/8"6"0.0600"
275071/2"Standard3/4"3"0.0150"
275091/2"Standard3/4"3"0.0300"
275191/2"Standard1"3"0.0150"
275211/2"Standard1"3"0.0300"
275231/2"Standard1"3"0.0600"
275251/2"Standard1"3"0.0900"
275261/2"Standard1"3"0.0900"
275271/2"Standard1"3"0.1200"
275311/2"Standard1-1/4"3"0.0150"
271201/2"Standard1-1/4"3"0.0300"
271211/2"Standard1-1/4"3"0.0600"
275331/2"Standard1-1/4"3"0.0900"
275351/2"Standard1-1/4"3"0.1200"
275391/2"Extra-Long2"4"0.0150"
275411/2"Extra-Long2"4"0.0300"
275421/2"Extra-Long2"4"0.0300"
275431/2"Extra-Long2"4"0.0600"
275471/2"Extra-Long2"4"0.1200"
275511/2"Extra-Long2-1/2"5"0.0150"
275531/2"Extra-Long2-1/2"5"0.0300"
275551/2"Extra-Long2-1/2"5"0.0600"
275571/2"Extra-Long2-1/2"5"0.0900"
275591/2"Extra-Long2-1/2"5"0.1200"
275651/2"Extra-Long3-1/4"6"0.0300"
275701/2"Extra-Long3-1/4"6"0.0900"
275691/2"Extra-Long3-1/4"6"0.0900"
276095/8"Stub3/4"3-1/2"0.0150"
271225/8"Standard1-1/4"3-1/2"0.0300"
271235/8"Standard1-1/4"3-1/2"0.0600"
276195/8"Standard1-1/4"3-1/2"0.0900"
276235/8"Standard1-5/8"3-1/2"0.0300"
276335/8"Extra-Long2-1/2"5"0.0300"
276375/8"Extra-Long2-1/2"5"0.0900"
276435/8"Extra-Long3-1/4"6"0.0300"
276455/8"Extra-Long3-1/4"6"0.0600"
276485/8"Extra-Long3-1/4"6"0.0900"
276993/4"Standard1"4"0.0300"
277033/4"Standard1"4"0.0900"
277053/4"Standard1"4"0.1200"
277233/4"Long Reach1"6"0.0150"
277253/4"Long Reach1"6"0.0300"
277293/4"Long Reach1"6"0.0900"
277313/4"Long Reach1"6"0.1200"
271253/4"Standard1-3/4"4"0.0300"
271263/4"Standard1-3/4"4"0.0600"
277353/4"Standard1-3/4"4"0.0900"
271273/4"Standard1-3/4"4"0.1200"
277393/4"Extra-Long2-1/2"5"0.0300"
277433/4"Extra-Long2-1/2"5"0.0900"
277453/4"Extra-Long2-1/2"5"0.1200"
277513/4"Extra-Long3-1/4"6"0.0600"
277533/4"Extra-Long3-1/4"6"0.0900"
277553/4"Extra-Long3-1/4"6"0.1200"
278511"Standard1-1/4"4"0.0300"
278531"Standard1-1/4"4"0.0600"
278571"Standard1-1/4"4"0.1200"
278641"Long Reach1-1/4"6"0.0300"
278871"Standard1-3/4"4"0.0300"
278891"Standard1-3/4"4"0.0600"
278971"Extra-Long2-1/2"5"0.0300"
278991"Extra-Long2-1/2"5"0.0600"
279071"Extra-Long3-1/4"6"0.0300"
279131"Extra-Long3-1/4"6"0.1200"
279241"Extra-Long4-1/8"7"0.1200"
EDPDiameterLengthFlute lengthOverall lengthRadiusOpen
279303 mmStandard12 mm50 mm0.5 mm
279313 mmStandard12 mm50 mm1 mm
271483 mmStandard20 mm50 mm0.3 mm
271664 mmStub8 mm50.01 mm0.3 mm
271704 mmStandard12 mm50 mm0.5 mm
271985 mmStub13 mm51 mm0.5 mm
272055 mmStandard20 mm64 mm0.75 mm
272096 mmStandard13 mm58 mm0.5 mm
272106 mmStandard13 mm58 mm0.5 mm
272116 mmStandard13 mm58 mm0.75 mm
272216 mmStandard25 mm64 mm0.5 mm
279336 mmStandard25 mm64 mm1 mm
272777 mmStandard25 mm64 mm0.5 mm
273298 mmLong Reach20 mm100 mm1 mm
273338 mmStandard25 mm64 mm0.5 mm
273358 mmStandard25 mm64 mm1 mm
279378 mmStandard25 mm64 mm2 mm
2737910 mmStub15 mm64 mm0.5 mm
2738110 mmStub15 mm64 mm1 mm
2739510 mmStandard26 mm64 mm0.5 mm
2739710 mmStandard26 mm64 mm1 mm
2739910 mmStandard26 mm64 mm1.5 mm
2738710 mmLong Reach26 mm100 mm0.5 mm
2738910 mmLong Reach26 mm100 mm1 mm
2739110 mmLong Reach26 mm100 mm1.5 mm
2794010 mmStandard27 mm64 mm3 mm
2740310 mmExtra-Long50 mm100 mm0.5 mm
2740610 mmExtra-Long50 mm100 mm1 mm
2740510 mmExtra-Long50 mm100 mm1 mm
2795812 mmLong Reach25 mm100 mm2 mm
2745312 mmStandard30 mm84 mm0.5 mm
2745712 mmStandard30 mm84 mm1.5 mm
2794112 mmStandard30 mm84 mm2 mm
2794312 mmStandard30 mm84 mm3 mm
2746312 mmExtra-Long50 mm100 mm1 mm
2758714 mmStandard30 mm84 mm1.5 mm
2759914 mmExtra-Long57 mm125 mm1.5 mm
2766316 mmLong Reach30 mm150 mm0.5 mm
2766916 mmLong Reach30 mm150 mm2 mm
2767516 mmStandard41 mm89 mm1 mm
2778120 mmStandard44 mm100 mm1 mm
2778020 mmStandard44 mm100 mm3 mm
2781925 mmLong Reach38 mm150 mm2 mm
2783525 mmStandard45 mm100 mm3 mm
2783925 mmExtra-Long63 mm150 mm1 mm
EDPDiameterLengthFlute lengthOverall lengthOpen
270551/8"Stub1/4"1-1/2"
270451/8"Stub1/4"1-1/2"
270001/8"Standard1/2"2"
270101/8"Standard1/2"2"
271001/8"Standard3/4"2"
270651/8"Standard3/4"2"
270463/16"Stub5/16"2"
270563/16"Stub5/16"2"
271013/16"Standard3/8"2"
270663/16"Standard3/8"2"
270113/16"Standard5/8"2"
270013/16"Standard5/8"2"
270471/4"Stub1/2"2"
270571/4"Stub1/2"2"
271021/4"Standard1/2"2-1/2"
270671/4"Standard1/2"2-1/2"
271031/4"Standard3/4"2-1/2"
270681/4"Standard3/4"2-1/2"
270121/4"Standard1"2-1/2"
270021/4"Standard1"2-1/2"
271041/4"Standard1-1/4"3"
270691/4"Standard1-1/4"3"
270201/4"Extra-Long2"4"
270485/16"Stub1/2"2-1/2"
271065/16"Standard13/16"2-1/2"
270715/16"Standard13/16"2-1/2"
270035/16"Standard1"2-1/2"
270135/16"Standard1"2-1/2"
271075/16"Standard1-1/4"3"
270215/16"Extra-Long1-1/4"4"
270493/8"Stub1/2"2-1/2"
270593/8"Stub1/2"2-1/2"
270043/8"Standard1"2-1/2"
270143/8"Standard1"2-1/2"
270883/8"Standard1"3"
270893/8"Standard1"3"
271183/8"Extra-Long1-1/2"4"
270353/8"Extra-Long2"4"
270223/8"Extra-Long2"4"
271081/2"Stub5/8"3"
270731/2"Stub5/8"3"
271311/2"Long Reach5/8"6"
270611/2"Stub3/4"3"
270511/2"Stub3/4"3"
271091/2"Standard1"3"
270741/2"Standard1"3"
270061/2"Standard1-1/4"3"
270161/2"Standard1-1/4"3"
279521/2"Extra-Long1-5/8"4"
270371/2"Extra-Long2"4"
270241/2"Extra-Long2"4"
271101/2"Extra-Long2-1/2"5"
270381/2"Extra-Long3-1/4"6"
270251/2"Extra-Long3-1/4"6"
271115/8"Stub3/4"3-1/2"
270765/8"Stub3/4"3-1/2"
271125/8"Standard1-1/4"3-1/2"
270075/8"Standard1-5/8"3-1/2"
270175/8"Standard1-5/8"3-1/2"
279995/8"Extra-Long2"5"
270395/8"Extra-Long2-1/2"5"
270265/8"Extra-Long2-1/2"5"
270405/8"Extra-Long3-1/4"6"
270275/8"Extra-Long3-1/4"6"
279515/8"Extra-Long3-3/4"6"
270633/4"Stub1"4"
270533/4"Stub1"4"
271323/4"Long Reach1"6"
271333/4"Long Reach1"6"
270183/4"Standard1-3/4"4"
270083/4"Standard1-3/4"4"
270283/4"Extra-Long2-1/2"5"
270413/4"Extra-Long2-1/2"5"
270293/4"Extra-Long3-1/4"6"
270541"Stub1-1/4"4"
270091"Standard1-3/4"4"
270301"Extra-Long2-1/2"5"
270311"Extra-Long3-1/4"6"
271131"Extra-Long4-1/8"7"
EDPDiameterLengthFlute lengthOverall lengthOpen
271363 mmStub6 mm38 mm
930003 mmStandard12 mm50 mm
271463 mmStandard20 mm50 mm
271644 mmStub8 mm50 mm
931004 mmStandard12 mm50 mm
930014 mmStandard16 mm50 mm
271955 mmStub13 mm51 mm
930025 mmStandard20 mm64 mm
931016 mmStub13 mm58 mm
930246 mmLong Reach20 mm100 mm
930036 mmStandard25 mm64 mm
930386 mmExtra-Long50 mm100 mm
272697 mmStandard15 mm64 mm
930047 mmStandard25 mm64 mm
273198 mmStub16 mm64 mm
930258 mmLong Reach20 mm100 mm
930058 mmStandard25 mm64 mm
930398 mmExtra-Long50 mm100 mm
2737710 mmStub15 mm64 mm
9301810 mmStandard26 mm64 mm
9300610 mmStandard26 mm64 mm
9302610 mmLong Reach26 mm100 mm
9304010 mmExtra-Long50 mm100 mm
2743512 mmStub20 mm76 mm
9302712 mmLong Reach25 mm100 mm
9300712 mmStandard30 mm84 mm
9304112 mmExtra-Long50 mm100 mm
9300814 mmStandard30 mm84 mm
2765316 mmStub30 mm89 mm
9302816 mmLong Reach30 mm150 mm
9300916 mmStandard41 mm89 mm
9304316 mmExtra-Long63 mm150 mm
9302920 mmLong Reach38 mm150 mm
9301020 mmStandard44 mm100 mm
9304420 mmExtra-Long63 mm150 mm
9301125 mmStandard45 mm100 mm
9304525 mmExtra-Long63 mm150 mm

Best Applications

How the AlumaMill G3 maps across ISO-513 material groups and machining operations.

RghFinSlotPlngHEM
NLow-Si Aluminum
NHigh-Si Aluminum
Also applicable Composites · Plastics · Wood
Not suitedSteelsStainlessSuper AlloysTitanium

Choosing Between the AlumaMill G3 & AlumaMill G3 Vicor

The 3833 AlumaMill G3 is designed for roughing and finishing in high- and low-silicon aluminum, composites, plastics, and wood. Available in ball, corner-radius, and square end styles, it provides flexibility across a wide range of non-ferrous applications. For aggressive machining in brass and copper—or operations that produce long, stringy chips—consider the 3805 AlumaMill G3 Vicor. Its chip breakers provide additional chip control, though it is available only with a corner-radius end.

Feature3833 AlumaMill G33805 AlumaMill G3 Vicor
MaterialsComposites, high-Si aluminum, low-Si aluminum, plastics, woodAluminum, brass, and copper
End StyleBall, Corner Radius, SquareCorner Radius only
Chip controlNo chip breakersChip breakers provide chip control for aggressive material removal

Frequently Asked Questions

It's designed for Composites, High Si Aluminum > 10%, Low Si Aluminum < 10%, Plastics, and Wood.

It's stocked Uncoated and with FC5 coating. Our FC5 coating is a specialized coating that minimizes buildup at the edge for cleaner machining in aluminum and titanium alloys.

It's available in Ball, Corner Radius, Square.

The 3833 AlumaMill G3 is a 3-flute tool.

The 3833 AlumaMill G3 has a helix angle of 37.50°.

The 3833 AlumaMill G3 holds a shank tolerance of h6 and a cutter tolerance of +.0000"/-.0005" | +0.000mm/-0.013mm.

Connect With Sales

Questions about the AlumaMill G3? Our engineering team will help you dial in the right tool.

Connect With Our Team

We'll route your message to the right engineer and follow up by email.
