3215SMSub-MiniatureEnd Mill

3215SM Sub-Miniature End Mill

Our Sub-Miniature end mill is designed for use in titanium, super alloys, hardened steels, steels, cast iron, brass & copper, and low si aluminum.

2 Flute
Sub-Miniature

The 3215SM Sub-Miniature is a versatile 2-flute, general-purpose end mill designed for small-diameter applications in titanium, super alloys, stainless steels, steels, cast iron, brass, copper, and low-silicon aluminum. Its 2-flute geometry provides added chip clearance at subminiature sizes. Available in a variety of single- and double-end configurations, it is stocked uncoated.

Key Features
01
Subminiature End Mill
02
Available with Square Corner, Ball End Types

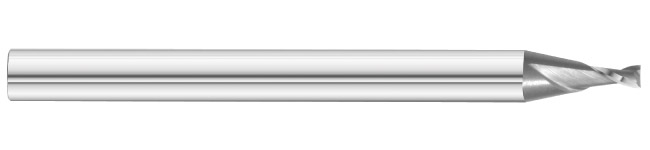

3215SM Sub-Miniature full length
03
Available Uncoated
The Sub-Miniature Lineup/ 106 tools
Varies by Size
Cutting Diameter
0.0050"TO0.0600"
Flute Length
0.0075"TO0.1800"
End Type
Consistent Across the Series
GradeGeneral Purpose
Flutes2
Spiral DirectionRight Hand Spiral
Helix Angle30.00°
Cutting TypeCenter
Shank Toleranceh6
Cutting Tolerance+.0005"/-.0005"
Shank Diameter0.1250
Overall Length1.5000
CoatingUncoated

Filter by diameter, length, coating and more — then check live pricing.

Explore this series

Resources

Access the information you need to put the Sub-Miniature to work.

Every 3215SM EDP

106 EDPs in the Sub-Miniature
EDPDiameterLengthFlute lengthOverall lengthOpen
326090.0050"Sub Mini Stub0.0075"1-1/2"
326680.0060"Sub Mini Stub0.0090"1-1/2"
326690.0070"Sub Mini Stub0.0105"1-1/2"
326980.0080"Sub Mini Stub0.0120"1-1/2"
326990.0090"Sub Mini Stub0.0135"1-1/2"
326700.0100"Sub Mini Stub0.0150"1-1/2"
309350.0100"Sub Mini0.0300"1-1/2"
326710.0110"Sub Mini Stub0.0165"1-1/2"
309360.0110"Sub Mini0.0330"1-1/2"
326720.0120"Sub Mini Stub0.0180"1-1/2"
309370.0120"Sub Mini0.0360"1-1/2"
326730.0130"Sub Mini Stub0.0195"1-1/2"
309380.0130"Sub Mini0.0390"1-1/2"
326740.0140"Sub Mini Stub0.0210"1-1/2"
309390.0140"Sub Mini0.0420"1-1/2"
326750.0150"Sub Mini Stub0.0225"1-1/2"
309400.0150"Sub Mini0.0450"1-1/2"
326760.0160"Sub Mini Stub0.0240"1-1/2"
309410.0160"Sub Mini0.0480"1-1/2"
326770.0170"Sub Mini Stub0.0255"1-1/2"
309420.0170"Sub Mini0.0510"1-1/2"
326780.0180"Sub Mini Stub0.0270"1-1/2"
309430.0180"Sub Mini0.0540"1-1/2"
326790.0190"Sub Mini Stub0.0285"1-1/2"
309440.0190"Sub Mini0.0570"1-1/2"
326800.0200"Sub Mini Stub0.0300"1-1/2"
309450.0200"Sub Mini0.0600"1-1/2"
326810.0210"Sub Mini Stub0.0315"1-1/2"
309460.0210"Sub Mini0.0630"1-1/2"
326970.0220"Sub Mini Stub0.0330"1-1/2"
309470.0220"Sub Mini0.0660"1-1/2"
326820.0230"Sub Mini Stub0.0345"1-1/2"
309480.0230"Sub Mini0.0690"1-1/2"
326830.0240"Sub Mini Stub0.0360"1-1/2"
309490.0240"Sub Mini0.0720"1-1/2"
326840.0250"Sub Mini Stub0.0375"1-1/2"
309500.0250"Sub Mini0.0750"1-1/2"
326850.0260"Sub Mini Stub0.0390"1-1/2"
309510.0260"Sub Mini0.0780"1-1/2"
309520.0270"Sub Mini0.0810"1-1/2"
326870.0280"Sub Mini Stub0.0420"1-1/2"
309530.0280"Sub Mini0.0840"1-1/2"
326880.0290"Sub Mini Stub0.0435"1-1/2"
309540.0290"Sub Mini0.0870"1-1/2"
326890.0300"Sub Mini Stub0.0450"1-1/2"
309550.0300"Sub Mini0.0900"1-1/2"
309560.0310"Sub Mini0.0930"1-1/2"
309570.0350"Sub Mini0.1050"1-1/2"
309580.0400"Sub Mini0.1200"1-1/2"
309600.0500"Sub Mini0.1500"1-1/2"
309610.0550"Sub Mini0.1650"1-1/2"
309620.0600"Sub Mini0.1800"1-1/2"
EDPDiameterLengthFlute lengthOverall lengthOpen
325400.0050"Sub Mini Stub0.0075"1-1/2"
325410.0060"Sub Mini Stub0.0090"1-1/2"
325420.0070"Sub Mini Stub0.0105"1-1/2"
325430.0080"Sub Mini Stub0.0120"1-1/2"
325440.0090"Sub Mini Stub0.0135"1-1/2"
323520.0100"Sub Mini Stub0.0150"1-1/2"
309000.0100"Sub Mini0.0300"1-1/2"
323530.0110"Sub Mini Stub0.0165"1-1/2"
309010.0110"Sub Mini0.0330"1-1/2"
323540.0120"Sub Mini Stub0.0180"1-1/2"
309020.0120"Sub Mini0.0360"1-1/2"
323550.0130"Sub Mini Stub0.0195"1-1/2"
309030.0130"Sub Mini0.0390"1-1/2"
323560.0140"Sub Mini Stub0.0210"1-1/2"
309040.0140"Sub Mini0.0420"1-1/2"
323570.0150"Sub Mini Stub0.0225"1-1/2"
309050.0150"Sub Mini0.0450"1-1/2"
323580.0160"Sub Mini Stub0.0240"1-1/2"
309060.0160"Sub Mini0.0480"1-1/2"
323590.0170"Sub Mini Stub0.0255"1-1/2"
309070.0170"Sub Mini0.0510"1-1/2"
323600.0180"Sub Mini Stub0.0270"1-1/2"
309080.0180"Sub Mini0.0540"1-1/2"
323610.0190"Sub Mini Stub0.0285"1-1/2"
309090.0190"Sub Mini0.0570"1-1/2"
323620.0200"Sub Mini Stub0.0300"1-1/2"
309100.0200"Sub Mini0.0600"1-1/2"
323630.0210"Sub Mini Stub0.0315"1-1/2"
309110.0210"Sub Mini0.0630"1-1/2"
323640.0220"Sub Mini Stub0.0330"1-1/2"
309120.0220"Sub Mini0.0660"1-1/2"
323650.0230"Sub Mini Stub0.0345"1-1/2"
309130.0230"Sub Mini0.0690"1-1/2"
323660.0240"Sub Mini Stub0.0360"1-1/2"
309140.0240"Sub Mini0.0720"1-1/2"
323670.0250"Sub Mini Stub0.0375"1-1/2"
309150.0250"Sub Mini0.0750"1-1/2"
323680.0260"Sub Mini Stub0.0390"1-1/2"
309160.0260"Sub Mini0.0780"1-1/2"
323690.0270"Sub Mini Stub0.0405"1-1/2"
309170.0270"Sub Mini0.0810"1-1/2"
323700.0280"Sub Mini Stub0.0420"1-1/2"
309180.0280"Sub Mini0.0840"1-1/2"
323710.0290"Sub Mini Stub0.0435"1-1/2"
309190.0290"Sub Mini0.0870"1-1/2"
323720.0300"Sub Mini Stub0.0450"1-1/2"
309200.0300"Sub Mini0.0900"1-1/2"
309210.0310"Sub Mini0.0930"1-1/2"
309220.0350"Sub Mini0.1050"1-1/2"
309230.0400"Sub Mini0.1200"1-1/2"
309240.0470"Sub Mini0.1410"1-1/2"
309250.0500"Sub Mini0.1500"1-1/2"
309260.0550"Sub Mini0.1650"1-1/2"
309270.0600"Sub Mini0.1800"1-1/2"

Choosing Between the Sub-Miniature & Sub-Miniature

The 3215SM Sub-Miniature is a 2-flute, general-purpose end mill designed to provide greater chip clearance at subminiature diameters. It offers the same ball and square end styles and tight cutter tolerance as its 4-flute counterpart. For applications where added rigidity and finish quality are the priority, consider the 3200SM Sub-Miniature. Its 4-flute design provides more cutting edges at the same small scale.

Feature3215SM Sub-Miniature3200SM Sub-Miniature
Flutes2-flute4-flute
End StyleBall, SquareBall, Square
CoatingUncoatedUncoated

Frequently Asked Questions

It's available in Ball, Square.

The 3215SM Sub-Miniature is a 2-flute tool.

The 3215SM Sub-Miniature has a helix angle of 30.00°.

The 3215SM Sub-Miniature holds a shank tolerance of h6 and a cutter tolerance of +.0005"/-.0005" | +0.02mm/-0.02mm.
