32004-Flute General Purpose.

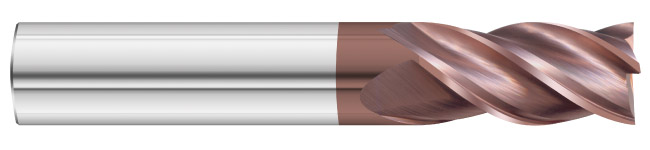

3200 General Purpose End Mill
Our General Purpose end mill is designed for use in titanium, super alloys, hardened steels, stainless steels, cast iron, brass & copper, and low si aluminum.
The 3200 General Purpose is a versatile 4-flute end mill designed for titanium, nickel-based super alloys, hardened steels above 48 HRC, stainless steels, steels, cast iron, brass, copper, and low-silicon aluminum. Available in a variety of configurations, including single- and double-end designs, it is offered uncoated or with FC-20, TiAlN, TiCN, and TiN coatings to support a wide range of everyday milling applications.
Filter by diameter, length, coating and more — then check live pricing.
Explore this seriesResources
Access the information you need to put the 4-Flute General Purpose to work.
3200 - GP End Mill S&F
Download
80th Edition Catalog
Download
Metric End Mill
Download
3200 FC20
Download
Technical Guide
Download
GP End Mills
DownloadBest Applications
How the 4-Flute General Purpose maps across ISO-513 material groups and machining operations.
Choosing Between the 4-Flute General Purpose & 2-Flute General Purpose
The 3200 4-Flute General Purpose end mill is designed for titanium, super alloys, hardened steels, stainless steels, cast iron, and low-silicon aluminum. Its 4-flute geometry provides the rigidity and finish quality needed for harder materials. For softer, non-ferrous materials where chip clearance is the priority, consider the 3215 2-Flute General Purpose end mill. Its 2-flute design provides more room for chip evacuation but is not designed for cast iron or hardened steels and is not available with an FC-20 coating.
| Feature | 3200 4-Flute General Purpose | 3215 2-Flute General Purpose |
|---|---|---|
| Flutes | 4-flute | 2-flute |
| Materials | Cast iron, composites, graphite, hardened steels (>48 RC), low-Si aluminum, plastics, stainless steels, steels, super alloys, titanium, wood | Composites, graphite, low-Si aluminum, plastics, stainless steels, steels, super alloys, titanium, wood |
| Coating Options | Uncoated, FC-20, TiAlN, TiCN, TiN | Uncoated, TiAlN, TiCN, TiN |
Frequently Asked Questions
It's designed for Cast Iron, Composites, Graphite, Hardened Steels > 48 RC, Low Si Aluminum < 10%, Plastics, Stainless Steels, Steels, Super Alloys (Nickel based, Inconel), Titanium, and Wood.
It's stocked Uncoated and with FC20, TiAlN - Titanium Aluminum Nitride, TiCN - Titanium Carbonnitride, TiN - Titanium Nitride coatings.
It's available in Ball, Corner Radius, Square.
The 3200 General Purpose is a 4-flute tool.
The 3200 General Purpose has a helix angle of 30.00°.
The 3200 General Purpose holds a shank tolerance of h6 and a cutter tolerance of +.0000"/-.002" | +0.00mm/-0.05mm.
Connect With Sales
Questions about the 4-Flute General Purpose? Our engineering team will help you dial in the right tool.
