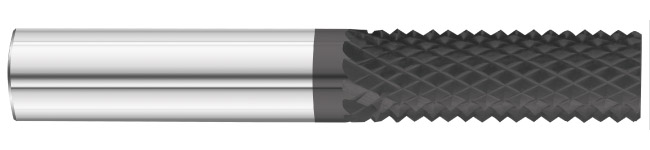

5600 MATRX Burr Router
Our MATRX Burr Router produces clean shearing of material's fibers and allows for aggressive removal rates with minimal delamination.
The 5600 MATRX Burr is a high-performance router available with 7 to 17 flutes. Its geometry cleanly shears material fibers and supports aggressive material removal while minimizing delamination. Available end configurations include no end cut, burr-style end cut, end mill end cut, and a 135° drill point. The 5600 is offered uncoated or with an FC1 diamond coating for added wear resistance.
Filter by diameter, length, coating and more — then check live pricing.
Explore this seriesResources
Access the information you need to put the MATRX to work.
Choosing Between the MATRX & Fiberglass Router
The 5600 MATRX Burr Router is designed to cleanly shear carbon-fiber-reinforced polymers, metal-matrix composites, high-silicon aluminum, and other difficult-to-machine non-ferrous materials while minimizing delamination. Its high-performance construction and FC1 diamond coating provide the wear resistance needed for demanding applications. For general fiberglass machining that does not require a coated, high-performance tool, consider the 2600 Fiberglass Router. It is stocked uncoated and offers the same flute-count and end-style options as the 5600.
| Feature | 5600 MATRX | 2600 Fiberglass Router |
|---|---|---|
| Grade | High Performance | General Performance |
| Coating | FC1 — excels in CFRP, metal matrix composites, high-Si aluminum, and other difficult-to-machine non-ferrous materials | Uncoated |
| Cutter tolerance | +.0000"/-.002" | +0.00mm/-0.13mm | .0000"/-.0050" |
Frequently Asked Questions
It's stocked Uncoated and with FC1 coating. Our FC1 coating is a thin-film CVD diamond coating engineered for abrasive materials. Ideal for graphite, green ceramics, CFRP, fiberglass, metal matrix composites, and cast aluminum alloys. Suitable for many dry machining applications.
It's available in Style A - No End Cut, Style B - Burr Type End Cut, Style C - End Mill Type End Cut, Style D - 135° Drill Point.
The 5600 MATRX Burr is available in flute counts ranging from 7 to 17.
The 5600 MATRX Burr has a helix angle of 28.00°.
The 5600 MATRX Burr holds a shank tolerance of h6 and a cutter tolerance of +.0000"/-.002" | +0.00mm/-0.13mm.
