General Purpose

1415Over/UnderReamer

1415 Over/Under Reamer

A general-purpose carbide reamer with a 45° chamfer end, designed for over/under reaming applications.

4, 6 Flute
Over/Under

The 1415 Over/Under Reamer is a general-purpose carbide reamer designed for over- and undersized reaming applications. It features a 45° chamfer end and is available with straight, right-hand spiral, or left-hand spiral flutes. The 1415 is stocked uncoated.

Key Features
01
45° chamfer end
Eases entry into the hole at the start of the cut.
02
Straight, right-hand spiral, and left-hand spiral flutes available.

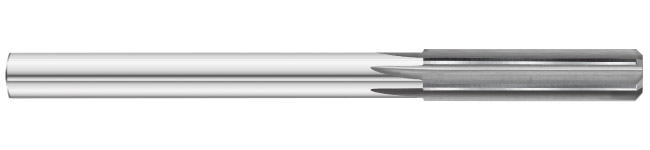

1415 Over/Under full length
03
Purpose-built for over/under reaming applications.
The Over/Under Lineup/ 30 tools
Varies by Size
Shank Diameter
0.1094"TO0.4688"
Cutting Diameter
0.1240"TO0.5010"
Flute Length
0.6250"TO1.5000"
Overall Length
2.2500"TO4.0000"
Number of Flutes
4TO6
Consistent Across the Series
GradeGeneral Purpose
Spiral DirectionStraight
Shank Tolerance+.0005" / -.0005"
LengthStub
CoatingUncoated
Cutting ToleranceUp to 1.0100"+.0002" / -.0000"1.0101" and Over+.0003" / -.0000"

Filter by diameter, length, coating and more — then check live pricing.

Explore this series

Resources

Access the information you need to put the Over/Under to work.

Every 1415 EDP

30 EDPs in the Over/Under
EDPDiameterFlute lengthOverall lengthFlutesOpen
141500.1240"5/8"2-1/4"4
141510.1245"5/8"2-1/4"4
141530.1255"5/8"2-1/4"4
141540.1260"5/8"2-1/4"4
141550.1865"7/8"2-3/4"4
141560.1870"7/8"2-3/4"4
141570.1872"7/8"2-3/4"4
141580.1880"7/8"2-3/4"4
141590.1885"7/8"2-3/4"4
141600.2490"1"3"6
141610.2495"1"3"6
141620.2497"1"3"6
141630.2505"1"3"6
141640.2510"1"3"6
141650.3115"1-1/8"3-1/4"6
141660.3120"1-1/8"3-1/4"6
141670.3130"1-1/8"3-1/4"6
141680.3135"1-1/8"3-1/4"6
141690.3740"1-1/4"3-1/2"6
141700.3745"1-1/4"3-1/2"6
141710.3755"1-1/4"3-1/2"6
141720.3760"1-1/4"3-1/2"6
141730.4365"1-1/2"4"6
141800.4370"1-1/2"4"6
141810.4380"1-1/2"4"6
141740.4385"1-1/2"4"6
141750.4990"1-1/2"4"6
141820.4995"1-1/2"4"6
141830.5005"1-1/2"4"6
141760.5010"1-1/2"4"6

Frequently Asked Questions

It uses a 45° chamfer end.

It's available in straight, right-hand spiral, and left-hand spiral flutes.

No, it's stocked uncoated.
