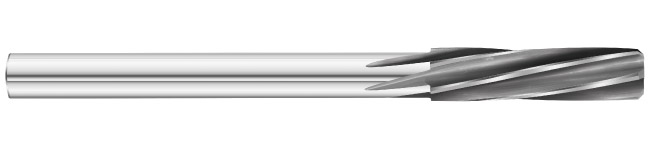

1410 JIT Reamer

The JIT Reamer offers 24-hour just-in-time delivery of straight, right-hand, and left-hand fluted reamers made to exact size requirements.

Tool Specifications
Grade |
General Performance
End Style |
45 Degree Chamfer
Number Of Flutes |
Vary By Diameter
Lengths |
Stub
Coating |
Uncoated
Single/Double End |
Single End
Spiral Direction |
Straight
Dimension Type |
Imperial
Shank Tolerance |
+.0005" / -.0005" | +.0.013 / -0.013mm
Cutting Tolerance |
Up to 1.0100" +.0002" / -.0000" 1.0101" and Over +.0003" / -.0000" Up to 25.654mm +0.005mm / -0.000mm 25.655 and Over +0.008mm / -0.000mm

The 1410 JIT Reamer offers 24-hour just-in-time delivery of straight, right-hand, and left-hand fluted reamers made to exact size requirements. Straight flutes were designed for all types of general reaming applications. Right-hand spiral flutes are recommended for blind holes and abrasive, ductile materials. Left-hand spiral flutes produce better finishes on hard materials such as heat-treated steels. The 1410 JIT Reamer is stocked with a 45° chamfer angle and uncoated.
