1400General PurposeReamer

1400 Carbide Reamer

A general-purpose carbide reamer with straight, right-hand spiral, or left-hand spiral flutes and a 45° chamfer end, designed for titanium, super alloys, hardened steels, stainless steels, cast iron, brass and copper, aluminum, and wood.

4, 6, 8 Flute
General Purpose

The 1400 Carbide Reamer is a general-purpose tool designed for accurate hole finishing in titanium, super alloys, hardened steels, stainless steels, cast iron, brass, copper, aluminum, and wood. It features a 45° chamfer end and is available with straight, right-hand spiral, or left-hand spiral flutes. The 1400 is stocked uncoated.

Key Features
01
45° chamfer end
Eases entry into the hole and reduces edge loading at the start of the cut.
02
Straight, right-hand spiral, and left-hand spiral flutes available
Straight flutes suit general reaming, right-hand spiral is recommended for blind holes and abrasive, ductile materials, and left-hand spiral produces better finishes on hard materials.

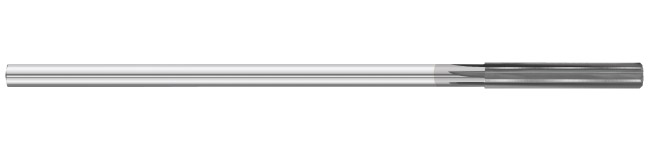

1400 General Purpose full length
03
Long reach design
Provides tool and chip clearance in deep-reaming operations.
04
Broad material range
Covers titanium, super alloys, hardened steels, stainless steels, cast iron, brass and copper, aluminum, and wood in a single general-purpose reamer.
The General Purpose Lineup/ 156 tools
Varies by Size
Cutting Diameter
0.0280"TO1.0000"
Shank Diameter
0.0280"TO0.9688"
Flute Length
0.3750"TO2.0000"
Overall Length
1.4961"TO10.0000"
Number of Flutes
4TO8
Consistent Across the Series
GradeGeneral Purpose
Spiral DirectionStraight
CoatingUncoated
Cutting ToleranceUp to 1.0100"+.0002" / -.0000"1.0101" and Over+.0003" / -.0000"

Filter by diameter, length, coating and more — then check live pricing.

Explore this series

Resources

Access the information you need to put the General Purpose to work.

Every 1400 EDP

156 EDPs in the General Purpose
EDPDiameterLengthFlute lengthOverall lengthFlutesOpen
140010.0280"Stub3/8"1-1/2"4
140020.0292"Stub3/8"1-1/2"4
140030.0310"Stub3/8"1-1/2"4
140041/32"Stub3/8"1-1/2"4
140050.0320"Stub3/8"1-1/2"4
140060.0330"Stub3/8"1-1/2"4
140070.0350"Stub3/8"1-1/2"4
140080.0360"Stub3/8"1-1/2"4
140090.0370"Stub3/8"1-1/2"4
140100.0380"Stub3/8"1-1/2"4
140110.0390"Stub3/8"1-1/2"4
140130.0400"Stub3/8"1-1/2"4
140140.0410"Stub3/8"1-1/2"4
140150.0420"Stub3/8"1-1/2"4
140160.0430"Stub3/8"1-1/2"4
140170.0465"Stub3/8"1-1/2"4
140183/64"Stub3/8"1-1/2"4
140190.0520"Stub3/8"1-1/2"4
140200.0550"Stub3/8"1-1/2"4
140230.0595"Stub3/8"1-1/2"4
140241/16"Stub3/8"1-1/2"4
140250.0635"Stub3/8"1-1/2"4
140260.0670"Stub1/2"2"4
140270.0700"Stub1/2"2"4
140280.0730"Stub1/2"2"4
140290.0760"Stub1/2"2"4
140305/64"Stub1/2"2"4
140310.0785"Stub1/2"2"4
140330.0810"Stub1/2"2"4
140340.0820"Stub1/2"2"4
140350.0860"Stub1/2"2"4
140360.0890"Stub1/2"2"4
140370.0935"Stub1/2"2"4
140383/32"Stub1/2"2"4
140390.0960"Stub1/2"2"4
140400.0980"Stub5/8"2-1/4"4
140420.0995"Stub5/8"2-1/4"4
140430.1015"Stub5/8"2-1/4"4
140440.1040"Stub5/8"2-1/4"4
140450.1065"Stub5/8"2-1/4"4
140467/64"Stub5/8"2-1/4"4
140470.1100"Stub5/8"2-1/4"4
140480.1110"Stub5/8"2-1/4"4
140490.1130"Stub5/8"2-1/4"4
140500.1160"Stub5/8"2-1/4"4
140520.1200"Stub5/8"2-1/4"4
140531/8"Stub5/8"2-1/4"4
145111/8"Standard7/8"3-1/2"4
140540.1285"Stub3/4"2-1/2"4
140550.1360"Stub3/4"2-1/2"4
140570.1405"Stub3/4"2-1/2"4
140589/64"Stub3/4"2-1/2"4
145129/64"Standard7/8"3-1/2"4
140590.1440"Stub3/4"2-1/2"4
140600.1470"Stub3/4"2-1/2"4
140610.1495"Stub3/4"2-1/2"4
140620.1520"Stub3/4"2-1/2"4
140630.1540"Stub3/4"2-1/2"4
140645/32"Stub3/4"2-1/2"4
145135/32"Standard1"4"4
140650.1570"Stub3/4"2-1/2"4
140670.1590"Stub3/4"2-1/2"4
140680.1610"Stub7/8"2-3/4"4
140690.1660"Stub7/8"2-3/4"4
140700.1695"Stub7/8"2-3/4"4
1407111/64"Stub7/8"2-3/4"4
1451411/64"Standard1"4"4
140720.1730"Stub7/8"2-3/4"4
140730.1770"Stub7/8"2-3/4"4
140750.1800"Stub7/8"2-3/4"4
140760.1820"Stub7/8"2-3/4"4
140770.1850"Stub7/8"2-3/4"4
140783/16"Stub7/8"2-3/4"4
145153/16"Standard1-1/8"4-1/2"4
140790.1890"Stub7/8"2-3/4"4
140800.1910"Stub7/8"2-3/4"4
140810.1935"Stub1"3"6
140820.1960"Stub1"3"6
140840.1990"Stub1"3"6
140850.2010"Stub1"3"6
1408613/64"Stub1"3"6
1451613/64"Standard1-1/4"5"6
140870.2040"Stub1"3"6
140880.2055"Stub1"3"6
140890.2090"Stub1"3"6
140900.2130"Stub1"3"6
140927/32"Stub1"3"6
145177/32"Standard1-1/4"5"6
140930.2210"Stub1"3"6
140940.2280"Stub1"3"6
1409615/64"Stub1"3"6
1451815/64"Standard1-1/4"6"6
140981/4"Stub1"3"6
145191/4"Standard1-1/2"6"6
1410017/64"Stub1-1/8"3-1/4"6
1452017/64"Standard1-1/2"6"6
141029/32"Stub1-1/8"3-1/4"6
145219/32"Standard1-1/2"6"6
1410419/64"Stub1-1/8"3-1/4"6
1452219/64"Standard1-5/8"6"6
141055/16"Stub1-1/8"3-1/4"6
145235/16"Standard1-5/8"6"6
1410721/64"Stub1-1/4"3-1/2"6
1452421/64"Standard1-5/8"6"6
1410911/32"Stub1-1/4"3-1/2"6
1452511/32"Standard1-5/8"6"6
1411123/64"Stub1-1/4"3-1/2"6
1452623/64"Standard1-3/4"7"6
141133/8"Stub1-1/4"3-1/2"6
145273/8"Standard1-3/4"7"6
1411425/64"Stub1-1/2"4"6
1452825/64"Standard1-3/4"7"6
1411613/32"Stub1-1/2"4"6
1452913/32"Standard1-3/4"7"6
1411827/64"Stub1-1/2"4"6
1453027/64"Standard1-3/4"7"6
141207/16"Stub1-1/2"4"6
145317/16"Standard1-3/4"7"6
1412229/64"Stub1-1/2"4"6
1453229/64"Standard1-3/4"8"6
1412315/32"Stub1-1/2"4"6
1453315/32"Standard1-3/4"8"6
1412531/64"Stub1-1/2"4"6
1453431/64"Standard1-3/4"8"6
141271/2"Stub1-1/2"4"6
145351/2"Standard1-3/4"8"6
145369/16"Standard1-7/8"9"6
145375/8"Standard1-7/8"9"6
1453811/16"Standard2"9-1/2"6
145393/4"Standard2"9-1/2"6
145407/8"Standard2"10"8
145411"Standard2"10"8
EDPDiameterFlute lengthOverall lengthFlutesOpen
140121 mm10 mm38 mm4
140221.5 mm10 mm38 mm4
140322 mm12 mm50 mm4
140412.5 mm16 mm57 mm4
140513 mm16 mm57 mm4
140563.5 mm20 mm63 mm4
140664 mm20 mm63 mm4
140744.5 mm22 mm70 mm4
140835 mm25 mm76 mm6
140915.5 mm25 mm76 mm6
140976 mm25 mm76 mm6
140996.5 mm28 mm83 mm6
141017 mm28 mm83 mm6
141037.5 mm28 mm83 mm6
141068 mm28 mm83 mm6
141088.5 mm32 mm89 mm6
141109 mm32 mm89 mm6
141129.5 mm32 mm89 mm6
1411510 mm38 mm101 mm6
1411710.5 mm38 mm101 mm6
1411911 mm38 mm101 mm6
1412111.5 mm38 mm101 mm6
1412412 mm38 mm101 mm6
1412612.5 mm38 mm101 mm6

Frequently Asked Questions

It's designed for reaming titanium, super alloys, hardened steels, stainless steels, cast iron, brass and copper, aluminum, and wood, making it a general-purpose choice across ferrous, non-ferrous, and non-metallic materials.

It's available with straight, right-hand spiral, and left-hand spiral flutes. Right-hand spiral is typically recommended for blind holes and abrasive, ductile materials, while left-hand spiral tends to produce better finishes on hard materials such as heat-treated steels.

No, it's stocked uncoated.

It uses a 45° chamfer end.

Cutter tolerance is +.0002"/-.0000" up to 1.0100" diameter and +.0003"/-.0000" for 1.0101" and over (metric equivalents +0.005mm/-0.000mm and +0.008mm/-0.000mm).
