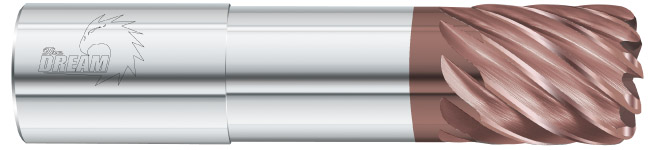

3810 Dream End Mill

The Dream excels in high-speed profiling and producing superior wall finishes.

Tool Specifications
Grade |
High Performance
End Style |
Radius
Number Of Flutes |
Vary By Diameter
Lengths |
Long Reach
Coating |
Uncoated, FC-20
Single/Double End |
Single End
Cutting Type |
Center
Spiral Direction |
Right Hand
Helix Angle |
38 Degrees
Dimension Type |
Imperial, Metric
Shank Tolerance |
h6
Cutting Tolerance |
+.0000"/-.002" | +0.00mm/-0.05mm

Application Check

The 3810 Dream is a high performance end mill available with 6, 8, or 10-flutes. It excels in high speed profiling of titanium and aluminum and produces superior wall finishes. It was specifically designed to support commercial and military aerospace applications where close tolerance and high accuracy is required. The 3810 Dream is stocked uncoated and with FC-20 coating.
