3730Chamfer MillEnd Mill

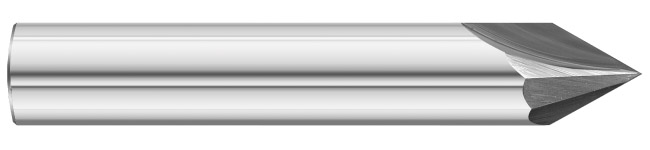

3730 Chamfer Mill End Mill
Our Chamfer Mill is designed for deburring and chamfering in small grooves and holes.
The 3730 Chamfer Mill is a general-purpose tool available with 2 or 4 flutes. Designed for deburring and chamfering small grooves and holes, it also supports longer tool life and consistent finishes when profiling or chamfering larger features.
Filter by diameter, length, coating and more — then check live pricing.
Explore this seriesResources
Access the information you need to put the Chamfer Mill to work.
Every 3730 EDP
| EDP | Diameter | Flute length | Overall length | Angle | Flutes | Coating | Open |
|---|---|---|---|---|---|---|---|
| 36160 | 1/8" | 1/16" | 1-1/2" | 90° | 2 | ||
| 36158 | 1/8" | 1/16" | 1-1/2" | 90° | 4 | ||
| 36159 | 1/8" | 1/16" | 1-1/2" | 90° | 4 | ||
| 36161 | 1/8" | 1/16" | 1-1/2" | 90° | 2 | ||
| 36156 | 1/8" | 0.1080" | 1-1/2" | 60° | 2 | ||
| 36155 | 1/8" | 0.1080" | 1-1/2" | 60° | 4 | ||
| 36154 | 1/8" | 0.1080" | 1-1/2" | 60° | 4 | ||
| 36157 | 1/8" | 0.1080" | 1-1/2" | 60° | 2 | ||
| 36171 | 3/16" | 0.0938" | 2" | 90° | 4 | ||
| 36172 | 3/16" | 0.0938" | 2" | 90° | 4 | ||
| 36173 | 3/16" | 0.0938" | 2" | 90° | 2 | ||
| 36174 | 3/16" | 0.0938" | 2" | 90° | 2 | ||
| 36164 | 3/16" | 0.1620" | 2" | 60° | 4 | ||
| 36166 | 3/16" | 0.1620" | 2" | 60° | 2 | ||
| 36163 | 3/16" | 0.1620" | 2" | 60° | 4 | ||
| 36165 | 3/16" | 0.1620" | 2" | 60° | 2 | ||
| 36147 | 1/4" | 1/8" | 2-1/2" | 90° | 2 | ||
| 36088 | 1/4" | 1/8" | 2-1/2" | 90° | 4 | ||
| 36089 | 1/4" | 1/8" | 2-1/2" | 90° | 2 | ||
| 36094 | 1/4" | 1/8" | 2-1/2" | 90° | 2 | ||
| 36146 | 1/4" | 1/8" | 2-1/2" | 90° | 4 | ||
| 36082 | 1/4" | 0.2160" | 2-1/2" | 60° | 4 | ||
| 36083 | 1/4" | 0.2160" | 2-1/2" | 60° | 2 | ||
| 36140 | 1/4" | 0.2160" | 2-1/2" | 60° | 4 | ||
| 36141 | 1/4" | 0.2160" | 2-1/2" | 60° | 2 | ||
| 36090 | 3/8" | 0.1870" | 2-1/2" | 90° | 4 | ||
| 36091 | 3/8" | 0.1870" | 2-1/2" | 90° | 2 | ||
| 36148 | 3/8" | 0.1870" | 2-1/2" | 90° | 4 | ||
| 36149 | 3/8" | 0.1870" | 2-1/2" | 90° | 2 | ||
| 36084 | 3/8" | 0.3240" | 2-1/2" | 60° | 4 | ||
| 36085 | 3/8" | 0.3240" | 2-1/2" | 60° | 2 | ||
| 36142 | 3/8" | 0.3240" | 2-1/2" | 60° | 4 | ||
| 36143 | 3/8" | 0.3240" | 2-1/2" | 60° | 2 | ||
| 36098 | 3/8" | 0.3280" | 2-1/2" | 60° | 2 | ||
| 36150 | 1/2" | 1/4" | 3" | 90° | 4 | ||
| 36092 | 1/2" | 1/4" | 3" | 90° | 4 | ||
| 36093 | 1/2" | 1/4" | 3" | 90° | 2 | ||
| 36096 | 1/2" | 1/4" | 3" | 90° | 2 | ||
| 36151 | 1/2" | 1/4" | 3" | 90° | 2 | ||
| 36086 | 1/2" | 0.4330" | 3" | 60° | 4 | ||
| 36087 | 1/2" | 0.4330" | 3" | 60° | 2 | ||
| 36144 | 1/2" | 0.4330" | 3" | 60° | 4 | ||
| 36145 | 1/2" | 0.4330" | 3" | 60° | 2 | ||
| 36179 | 5/8" | 5/16" | 4" | 90° | 2 | ||
| 36181 | 5/8" | 5/16" | 4" | 90° | 2 | ||
| 36183 | 5/8" | 5/16" | 4" | 90° | 4 | ||
| 36185 | 5/8" | 5/16" | 4" | 90° | 4 | ||
| 36175 | 3/4" | 3/8" | 4" | 90° | 4 | ||
| 36176 | 3/4" | 3/8" | 4" | 90° | 4 | ||
| 36177 | 3/4" | 3/8" | 4" | 90° | 2 | ||
| 36178 | 3/4" | 3/8" | 4" | 90° | 2 | ||
| 36167 | 3/4" | 0.6490" | 4" | 60° | 4 | ||
| 36169 | 3/4" | 0.6490" | 4" | 60° | 2 | ||
| 36170 | 3/4" | 0.6490" | 4" | 60° | 2 | ||
| 36180 | 1" | 1/2" | 4" | 90° | 2 | ||
| 36184 | 1" | 1/2" | 4" | 90° | 4 | ||
| 36182 | 1" | 1/2" | 4" | 90° | 2 | ||
| 36186 | 1" | 1/2" | 4" | 90° | 4 |
Frequently Asked Questions
It's stocked Uncoated and with TiAlN - Titanium Aluminum Nitride. Our TiAlN coating is a proven high-performance coating for high-strength steels, hardened tool steels, high-temperature alloys, and titanium. Also suitable for dry machining to reduce thermal shock caused by flood coolant.
It's available in Chamfer.
The 3730 Chamfer Mill is available in 2 or 4 flutes.
The 3730 Chamfer Mill holds a shank tolerance of h6.
