3410FantomEnd Mill

3410 Fantom End Mill

Our Fantom high-performance end mill is a robust cutter that allows heavier chip loads and produces superior part finishes in steels, super alloys, stainless steels, and steels.

MStainless SteelsNBrass & CopperPSteelsSSuper Alloys (Nickel based, Inconel)5 Flute
Fantom

The 3410 Fantom is a 5-flute, high-performance end mill designed for brass, copper, steels, stainless steels, titanium, and nickel-based super alloys, including Inconel. Its variable index and eccentric relief provide stability and cutting-edge strength, supporting heavier chip loads and consistent part finishes in difficult-to-machine materials.

Key Features
01
Unequal Index helps reduce harmonics and chatter.
02
Eccentric Relief provides a strong cutting edge on end mills.

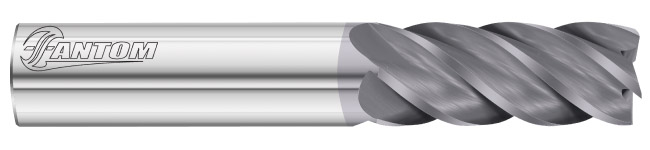

3410 Fantom full length
03
Protected Corner prevents premature breakdown of a corner radius.
The Fantom Lineup/ 40 tools
Varies by Size
Cutting & Shank Diameter
0.1575"TO1.0000"
Flute Length
0.3750"TO2.2500"
Overall Length
1.9685"TO6.0000"
Radius
0.0197"TO0.1200"
Consistent Across the Series
GradeHigh Performance
Flutes5
Spiral DirectionRight Hand Spiral
Helix AngleVariable
Cutting TypeCenter
Shank Toleranceh6
Cutting Tolerance+.0000"/-.002"
Weldon FlatAvailable
CoatingFC18
Built to CutMStainless SteelsNBrass & CopperPSteelsSSuper Alloys (Nickel based, Inconel)

Filter by diameter, length, coating and more — then check live pricing.

Explore this series

Resources

Access the information you need to put the Fantom to work.

Every 3410 EDP

40 EDPs in the Fantom
EDPDiameterLengthFlute lengthOverall lengthRadiusOpen
341601/4"Stub3/8"2"0.0200"
341061/4"Standard3/4"2-1/2"0.0200"
341085/16"Standard7/8"2-1/2"0.0200"
347893/8"Standard1/2"2-1/2"0.0300"
341103/8"Standard1"2-1/2"0.0200"
341641/2"Stub5/8"3"0.0300"
347931/2"Standard5/8"3"0.0600"
341801/2"Standard1"3"0.0200"
341141/2"Standard1"3"0.0300"
341151/2"Standard1-1/4"3"0.0300"
341191/2"Standard2"4"0.0300"
341665/8"Stub3/4"3-1/2"0.0350"
347045/8"Standard1-1/2"3-1/2"0.0300"
347055/8"Standard1-1/2"3-1/2"0.0600"
341035/8"Standard1-5/8"4"0.0350"
347115/8"Standard1-5/8"4"0.1200"
341215/8"Standard2-1/4"5"0.0350"
346593/4"Long Reach1"6"0.1200"
34118W3/4"Standard1-1/2"4"0.0350"
341183/4"Standard1-1/2"4"0.0350"
341223/4"Standard2-1/4"5"0.0350"
34122W3/4"Standard2-1/4"5"0.0350"
341231"Standard2-1/4"5"0.0350"
EDPDiameterFlute lengthOverall lengthRadiusOpen
9245410 mm25 mm89 mm0.5 mm
9143212 mm16 mm63 mm1 mm
9143312 mm16 mm63 mm1.5 mm
9257012 mm25 mm76 mm0.5 mm
EDPDiameterLengthFlute lengthOverall lengthOpen
341501/4"Stub3/8"2"
341251/4"Standard3/4"2-1/2"
341523/8"Stub1/2"2-1/2"
341293/8"Standard1"2-1/2"
341317/16"Standard1"2-3/4"
341541/2"Stub5/8"3"
341331/2"Standard1"3"
341351/2"Standard1-1/4"3"
347331/2"Extra-Long1-5/8"4"
341565/8"Stub3/4"3-1/2"
341375/8"Standard1-1/2"3-1/2"
EDPDiameterFlute lengthOverall lengthOpen
926014 mm14 mm50 mm
9256510 mm25 mm64 mm

Best Applications

How the Fantom maps across ISO-513 material groups and machining operations.

Applicable for
PSteelsMStainlessNBrass & CopperSSuper AlloysSTitanium
Not suited for Composites · Plastics

Choosing Between the Fantom & Fantom 2.0

The 3410 Fantom is designed for stable, high-performance milling in steels, stainless steels, titanium, super alloys, brass, and copper. Its FC18 coating provides the wear resistance needed to support heavier chip loads and consistent performance. For hardened steels above 48 HRC, consider the 3412 Fantom 2.0. Its FC20 coating and enhanced cutting-edge strength improve durability and productivity, helping reduce cost per part without sacrificing tool stability.

Feature3410 Fantom3412 Fantom 2.0
Best forSteels, stainless steels, super alloys, titanium, brass & copperHardened steels (>48 RC), stainless steels, super alloys, steels, titanium
CoatingFC18 — wear resistanceFC20 — high hardness, elasticity, oxidation resistance, low friction
Key benefitHeavier chip loads, superior part finishesEnhanced edge strength, increased productivity, lower cost per part

Frequently Asked Questions

It's designed for Brass & Copper, Stainless Steels, Steels, Super Alloys (Nickel based, Inconel), and Titanium.

It's stocked with FC18 coating. Our FC18 coating is built for high-speed machining with outstanding oxidation resistance, hot hardness, and wear resistance. Ideal for stainless steels, alloy steels, titanium, and hardened steels.

It's available in Corner Radius, Square.

The 3410 Fantom is a 5-flute tool.

The 3410 Fantom uses a variable helix angle.

The 3410 Fantom holds a shank tolerance of h6 and a cutter tolerance of +.0000"/-.002" | +0.00mm/-0.05mm.
