High Performance

3400Harmon-i-CutEnd Mill

3400 Harmon-i-Cut End Mill

Our Harmon-i-Cut high-performance end mill is designed with a variable helix, unequal index, and varying rake to help minimize the effect of harmonics and chatter in difficult-to-machine ferrous materials.

KCast IronMStainless SteelsNBrass & CopperPSteelsSSuper Alloys (Nickel based, Inconel)4 Flute
Harmon-i-Cut

The 3400 Harmon-i-Cut is a 4-flute, high-performance end mill designed for brass, copper, cast iron, steels, stainless steels, titanium, and nickel-based super alloys, including Inconel. Its variable helix, unequal flute spacing, and varying rake help reduce harmonics and chatter while supporting longer tool life and higher material-removal rates in difficult-to-machine materials.

Key Features
01
Variable Helix, Unequal Index, and Varying Rake helps reduce harmonics and chatter.
02
Capable to rough and finish with one tool.
03
Designed for difficult-to-machine ferrous materials.

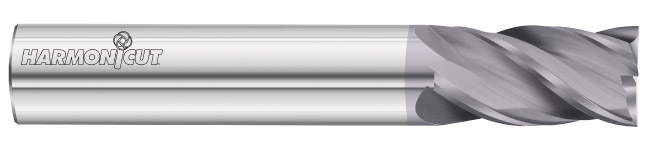

3400 Harmon-i-Cut full length
04
4 Individually designed flutes.
05
FC-18 coating is built for high-speed machining with outstanding oxidation resistance, hot hardness, and wear resistance.
The Harmon-i-Cut Lineup/ 133 tools
Varies by Size
Cutting & Shank Diameter
0.1181"TO1.0000"
Neck Diameter
0.2200"TO0.7618"
Flute Length
0.2362"TO2.2500"
Overall Length
1.4961"TO6.0000"
Radius
0.0079"TO0.1200"
Reach
2.0000"TO3.5039"
Consistent Across the Series
GradeHigh Performance
Flutes4
Spiral DirectionRight Hand Spiral
Helix AngleVariable
Cutting TypeCenter
Shank Toleranceh6
Cutting Tolerance+.0000"/-.002"
Weldon FlatAvailable
CoatingFC18
Built to CutKCast IronMStainless SteelsNBrass & CopperPSteelsSSuper Alloys (Nickel based, Inconel)

Filter by diameter, length, coating and more — then check live pricing.

Explore this series

Resources

Access the information you need to put the Harmon-i-Cut to work.

Every 3400 EDP

133 EDPs in the Harmon-i-Cut
EDPDiameterLengthFlute lengthOverall lengthOpen
349241/8"Stub1/4"1-1/2"
340811/8"Standard1/2"1-1/2"
340853/16"Standard5/8"2"
349261/4"Stub3/8"2"
340891/4"Standard3/4"2-1/2"
340935/16"Standard7/8"2-1/2"
349283/8"Stub1/2"2-1/2"
340973/8"Standard1"2-1/2"
341017/16"Standard1"2-3/4"
349301/2"Stub5/8"3"
341051/2"Standard1"3"
341171"Standard1-1/2"4"
EDPDiameterLengthFlute lengthOverall lengthRadiusOpen
349121/8"Stub1/4"1-1/2"0.0100"
347541/8"Standard1/4"1-1/2"0.0200"
340411/8"Standard1/2"1-1/2"0.0100"
347553/16"Standard7/16"2"0.0100"
347573/16"Standard7/16"2"0.0300"
340453/16"Standard5/8"2"0.0100"
347581/4"Standard3/8"2"0.0100"
347601/4"Standard3/8"2"0.0600"
345611/4"Standard3/4"2-1/2"0.0100"
340491/4"Standard3/4"2-1/2"0.0200"
340511/4"Standard3/4"2-1/2"0.0600"
340521/4"Standard3/4"2-1/2"0.0900"
341981/4"Long Reach3/4"3"0.0200"
347625/16"Standard1/2"2"0.0200"
347645/16"Standard1/2"2"0.0600"
347655/16"Standard1/2"2"0.0900"
340535/16"Standard7/8"2-1/2"0.0200"
340545/16"Standard7/8"2-1/2"0.0300"
347673/8"Standard1/2"2-1/2"0.0600"
347683/8"Standard1/2"2-1/2"0.0900"
342003/8"Long Reach3/4"4"0.0200"
340573/8"Standard1"2-1/2"0.0200"
340593/8"Standard1"2-1/2"0.0300"
340603/8"Standard1"2-1/2"0.0600"
340583/8"Standard2"4"0.0200"
340617/16"Standard1"2-3/4"0.0200"
345667/16"Standard1"2-3/4"0.0900"
340651/2"Standard1"3"0.0300"
341701/2"Standard1"3"0.0600"
341721/2"Standard1"3"0.1200"
340671/2"Standard1-1/4"3"0.0300"
341731/2"Standard1-1/4"3"0.0600"
341751/2"Standard1-1/4"3"0.1200"
340681/2"Standard2"4"0.0300"
347735/8"Standard3/4"3-1/2"0.0300"
349205/8"Stub3/4"3-1/2"0.0350"
342085/8"Long Reach3/4"6"0.0350"
340695/8"Standard1-1/2"3-1/2"0.0350"
340715/8"Standard1-1/2"3-1/2"0.0600"
341905/8"Standard1-1/2"3-1/2"0.1200"
340705/8"Standard2-1/4"5"0.0350"
347773/4"Standard7/8"4"0.0300"
340743/4"Standard2-1/4"5"0.0350"
340781"Standard2-1/4"5"0.0350"
345711"Standard2-1/4"5"0.0600"
340791"Standard2-1/4"5"0.1200"
EDPDiameterLengthFlute lengthOverall lengthRadiusOpen
924313 mmStub6 mm38 mm0.2 mm
924233 mmStandard12 mm38 mm0.2 mm
927914 mmStandard8 mm50 mm0.2 mm
926054 mmStub8 mm50 mm0.3 mm
924944 mmStandard14 mm50 mm0.2 mm
926144 mmStandard14 mm50 mm0.3 mm
927925 mmStandard10 mm51 mm0.2 mm
924955 mmStandard16 mm64 mm0.2 mm
927956 mmStandard10 mm50 mm0.5 mm
927976 mmStandard10 mm50 mm1 mm
925596 mmStandard20 mm64 mm0.3 mm
925756 mmStandard20 mm64 mm0.75 mm
925766 mmStandard20 mm64 mm1 mm
925776 mmStandard20 mm64 mm1.5 mm
924246 mmStandard20 mm76 mm0.3 mm
913918 mmStandard12 mm50 mm0.3 mm
924338 mmStub12 mm50 mm0.5 mm
925608 mmStandard22 mm64 mm0.5 mm
925808 mmStandard22 mm64 mm1.5 mm
925818 mmStandard22 mm64 mm2 mm
924258 mmStandard22 mm76 mm0.5 mm
9243410 mmStub12 mm50 mm0.5 mm
9139910 mmStandard12 mm50 mm1.5 mm
9243710 mmLong Reach20 mm100 mm0.5 mm
9256110 mmStandard25 mm64 mm0.5 mm
9258410 mmStandard25 mm64 mm1.5 mm
9242610 mmStandard25 mm89 mm0.5 mm
9243512 mmStub16 mm63 mm0.5 mm
9140412 mmStandard16 mm63 mm2 mm
9256212 mmStandard25 mm76 mm0.5 mm
9258812 mmStandard25 mm76 mm1 mm
9259012 mmStandard25 mm76 mm2 mm
9242712 mmStandard25 mm100 mm0.5 mm
9243616 mmStub20 mm89 mm0.5 mm
9243916 mmLong Reach20 mm150 mm0.5 mm
9259516 mmStandard38 mm100 mm2 mm
9242816 mmStandard38 mm100 mm0.5 mm
9244020 mmLong Reach20 mm150 mm1 mm
9262020 mmStandard38 mm100 mm0.5 mm
9242920 mmStandard38 mm100 mm1 mm
EDPDiameterLengthFlute lengthOverall lengthOpen
349001/8"Stub1/4"1-1/2"
340011/8"Standard1/2"1-1/2"
347513/16"Standard7/16"2"
340053/16"Standard5/8"2"
349021/4"Stub3/8"2"
340091/4"Standard3/4"2-1/2"
347525/16"Standard1/2"2"
340135/16"Standard7/8"2-1/2"
349043/8"Stub1/2"2-1/2"
340173/8"Standard1"2-1/2"
340217/16"Standard1"2-3/4"
349061/2"Stub5/8"3"
340251/2"Standard1"3"
340271/2"Standard1-1/4"3"
340295/8"Standard1-1/2"3-1/2"
349103/4"Stub7/8"4"
340333/4"Standard1-1/2"4"
340371"Standard1-1/2"4"
34037W1"Standard1-1/2"4"
EDPDiameterLengthFlute lengthOverall lengthOpen
924103 mmStandard12 mm38 mm
926034 mmStub8 mm50 mm
926045 mmStub10 mm51 mm
926125 mmStandard16 mm64 mm
924186 mmStub10 mm50 mm
925556 mmStandard20 mm64 mm
924116 mmStandard20 mm76 mm
924198 mmStub12 mm50 mm
925568 mmStandard22 mm64 mm
924128 mmStandard22 mm76 mm
9242010 mmStub12 mm50 mm
9255710 mmStandard25 mm64 mm
9241310 mmStandard25 mm89 mm
9255812 mmStandard25 mm76 mm
9241412 mmStandard25 mm100 mm
9241516 mmStandard38 mm100 mm

Best Applications

How the Harmon-i-Cut maps across ISO-513 material groups and machining operations.

RghFinSlotPlngHEM
KCast Iron
NBrass & Copper
Also applicable Steels · Stainless · Super Alloys · Titanium
Not suitedCompositesPlastics

Frequently Asked Questions

It's designed for Brass & Copper, Cast Iron, Stainless Steels, Steels, Super Alloys (Nickel based, Inconel), and Titanium.

It's stocked with FC 18 coating. Our FC18 coating is built for high-speed machining with outstanding oxidation resistance, hot hardness, and wear resistance. Ideal for stainless steels, alloy steels, titanium, and hardened steels.

It's available in Ball, Corner Radius, Square.

The 3400 Harmon-i-Cut is a 4-flute tool.

The 3400 Harmon-i-Cut uses a variable helix angle.

The 3400 Harmon-i-Cut holds a shank tolerance of h6 and a cutter tolerance of +.0000"/-.002" | +0.00mm/-0.05mm.
