3200SMSub-Miniature.
3200SM Sub-Miniature End Mill
Our Sub-Miniature end mill is designed for use in titanium, super alloys, hardened steels, steels, cast iron, brass & copper, and low si aluminum.

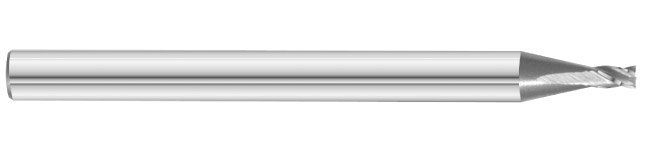

The 3200SM Sub-Miniature is a versatile 4-flute, general-purpose end mill designed for small-diameter applications in titanium, nickel-based super alloys, hardened steels, stainless steels, steels, cast iron, brass, copper, and low-silicon aluminum. Available in a variety of single- and double-end configurations, it is stocked uncoated.
Filter by diameter, length, coating and more — then check live pricing.
Explore this seriesResources
Access the information you need to put the Sub-Miniature to work.
Choosing Between the Sub-Miniature & Sub-Miniature
The 3200SM Sub-Miniature is a 4-flute, general-purpose end mill designed for small-diameter machining in titanium, super alloys, hardened steels, steels, cast iron, brass, copper, and low-silicon aluminum. Its 4-flute geometry provides added rigidity and supports consistent finish quality at subminiature sizes. For applications that require greater chip clearance, consider the 3215SM Sub-Miniature. Its 2-flute design provides more room for chip evacuation while offering the same ball and square end styles and subminiature cutter tolerance.
| Feature | 3200SM Sub-Miniature | 3215SM Sub-Miniature |
|---|---|---|
| Flutes | 4-flute | 2-flute |
| End Style | Ball, Square | Ball, Square |
| Coating | Uncoated | Uncoated |
Frequently Asked Questions
It's available in Ball, Square.
The 3200SM Sub-Miniature is a 4-flute tool.
The 3200SM Sub-Miniature has a helix angle of 30.00°.
The 3200SM Sub-Miniature holds a shank tolerance of h6 and a cutter tolerance of +.0005"/-.0005" | +0.02mm/-0.02mm.
