High Performance

3000IntimidatorEnd Mill

3000 Intimidator End Mill

Our Intimidator high-performance end mill excels in slotting, roughing, and finishing applications in difficult-to-machine materials.

MStainless SteelsPSteelsSSuper Alloys (Nickel based, Inconel)4 Flute
Intimidator

Built for difficult-to-machine materials, the 3000 Intimidator is a 4-flute, high-performance end mill designed for slotting, roughing, and finishing in steels, stainless steels, titanium, and nickel-based super alloys, including Inconel. Its unequal flute spacing helps reduce chatter, while specialized flute and eccentric relief provide stability and a strong cutting edge throughout the cut.

Key Features
01
Unequal Index helps reduce harmonics and chatter.
02
Eccentric Relief provides a strong cutting edge.

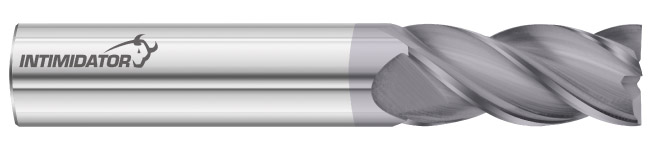

3000 Intimidator full length
03
Designed for difficult-to-machine ferrous materials.
04
Can be used in full slotting, roughing, and finishing applications.
The Intimidator Lineup/ 135 tools
Varies by Size
Cutting & Shank Diameter
0.1181"TO1.0000"
Flute Length
0.2362"TO3.0000"
Overall Length
1.4961"TO6.0000"
Chamfer Length
0.0100"TO0.0200"
Radius
0.0100"TO0.1250"
Consistent Across the Series
GradeHigh Performance
Flutes4
Spiral DirectionRight Hand Spiral
Helix Angle38.00°
Cutting TypeCenter
Shank Toleranceh6
Cutting Tolerance+.0000"/-.002"
Chamfer Angle45°
Weldon FlatAvailable
CoatingFC18
Built to CutMStainless SteelsPSteelsSSuper Alloys (Nickel based, Inconel)

Filter by diameter, length, coating and more — then check live pricing.

Explore this series

Resources

Access the information you need to put the Intimidator to work.

Every 3000 EDP

135 EDPs in the Intimidator
EDPDiameterLengthFlute lengthOverall lengthOpen
343501/8"Stub1/4"1-1/2"
343001/8"Standard1/2"1-1/2"
343713/16"Stub3/8"2"
343013/16"Standard5/8"2"
343511/4"Stub3/8"2"
343021/4"Standard3/4"2-1/2"
345201/4"Extra-Long1-3/4"4"
343525/16"Stub1/2"2-1/2"
343035/16"Standard3/4"2-1/2"
343533/8"Stub1/2"2-1/2"
343043/8"Standard7/8"2-1/2"
343541/2"Stub5/8"3"
343061/2"Standard1"3"
343051/2"Standard1-1/8"3"
343071/2"Standard1-1/4"3"
342411/2"Standard1-1/4"3"
343081/2"Standard2"4"
343555/8"Stub3/4"3-1/2"
343095/8"Standard1-1/4"3-1/2"
343105/8"Standard1-5/8"4"
343563/4"Stub7/8"4"
343113/4"Standard1-1/2"4"
343143/4"Standard1-5/8"4"
343123/4"Standard1-3/4"4"
343131"Standard1-1/2"4"
343151"Standard2"5"
EDPDiameterLengthFlute lengthOverall lengthRadiusOpen
343643/16"Stub3/8"2"0.0300"
344023/16"Standard5/8"2"0.0100"
344033/16"Standard5/8"2"0.0200"
344043/16"Standard5/8"2"0.0300"
344051/4"Standard3/4"2-1/2"0.0100"
344071/4"Standard3/4"2-1/2"0.0300"
345281/4"Extra-Long1-3/4"4"0.0100"
345291/4"Extra-Long1-3/4"4"0.0200"
343665/16"Stub1/2"2-1/2"0.0300"
344093/8"Standard7/8"2-1/2"0.0100"
344103/8"Standard7/8"2-1/2"0.0200"
344133/8"Standard7/8"2-1/2"0.0600"
345333/8"Extra-Long2"4"0.0600"
342301/2"Standard7/8"3"0.0100"
344141/2"Standard7/8"3"0.0100"
344171/2"Standard7/8"3"0.0450"
344161/2"Standard1"3"0.0300"
344191/2"Standard1"3"0.0900"
344201/2"Standard1"3"0.1250"
345001/2"Extra-Long2"4"0.0200"
342441/2"Extra-Long2"4"0.0200"
345021/2"Extra-Long2"4"0.1200"
344215/8"Standard1-1/4"3-1/2"0.0300"
344225/8"Standard1-1/4"3-1/2"0.0450"
344245/8"Standard1-1/4"3-1/2"0.0900"
344255/8"Standard1-1/4"3-1/2"0.1250"
344263/4"Standard1-1/2"4"0.0300"
342873/4"Standard1-1/2"4"0.0450"
344283/4"Standard1-1/2"4"0.0600"
344293/4"Standard1-1/2"4"0.0900"
344303/4"Standard1-1/2"4"0.1250"
345063/4"Standard1-3/4"4"0.0300"
345073/4"Standard1-3/4"4"0.0600"
345083/4"Standard1-3/4"4"0.0900"
343263/4"Standard1-3/4"4"0.1200"
345423/4"Extra-Long3"6"0.0300"
345433/4"Extra-Long3"6"0.0600"
344311"Standard1-1/2"4"0.0300"
344331"Standard1-1/2"4"0.0600"
344351"Standard1-1/2"4"0.1250"
345471"Extra-Long3"6"0.0600"
EDPDiameterLengthFlute lengthOverall lengthRadiusOpen
939093 mmStub6 mm38 mm0.3 mm
939104 mmStub8 mm50 mm0.3 mm
939114 mmStub8 mm50 mm0.5 mm
938104 mmStandard14 mm50 mm0.3 mm
938114 mmStandard14 mm50 mm0.5 mm
939125 mmStub10 mm51 mm0.3 mm
938135 mmStandard16 mm64 mm0.5 mm
938146 mmStandard20 mm64 mm0.5 mm
938166 mmStandard20 mm64 mm1 mm
939178 mmStub16 mm50 mm0.5 mm
938198 mmStandard22 mm64 mm1 mm
9382110 mmStandard25 mm64 mm0.5 mm
9382310 mmStandard25 mm64 mm1 mm
9382510 mmStandard25 mm64 mm2 mm
9392712 mmStub20 mm63 mm0.75 mm
9016812 mmStandard26.01 mm84 mm0.75 mm
9382612 mmStandard27 mm76 mm0.5 mm
9382812 mmStandard27 mm76 mm1 mm
9393416 mmStub25 mm89 mm1.5 mm
9383216 mmStandard38 mm100 mm0.75 mm
9383316 mmStandard38 mm100 mm1 mm
9393920 mmStub30 mm100 mm2 mm
EDPDiameterLengthFlute lengthOverall lengthOpen
345501/8"Standard1/4"1-1/2"
342901/8"Standard1/2"1-1/2"
345513/16"Standard3/8"2"
342913/16"Standard5/8"2"
345521/4"Standard3/8"2"
342921/4"Standard3/4"2-1/2"
345101/4"Extra-Long1-3/4"4"
345535/16"Standard1/2"2-1/2"
345035/16"Standard3/4"2-1/2"
345115/16"Extra-Long1-1/4"3-1/4"
345543/8"Standard1/2"2-1/2"
342933/8"Standard7/8"2-1/2"
342941/2"Standard1"3"
345131/2"Extra-Long1-1/4"3"
342421/2"Extra-Long2"4"
345141/2"Extra-Long2"4"
342461/2"Extra-Long3"5"
345565/8"Standard3/4"3-1/2"
342955/8"Standard1-1/4"3-1/2"
342885/8"Standard1-5/8"4"
345573/4"Standard7/8"4"
342963/4"Standard1-1/2"4"
342893/4"Standard1-5/8"4"
345043/4"Standard1-3/4"4"
345173/4"Extra-Long2-1/4"5"
343293/4"Extra-Long3"6"
345183/4"Extra-Long3"6"
342971"Standard1-1/2"4"
342981"Standard2"5"
345191"Extra-Long3"6"
EDPDiameterLengthFlute lengthOverall lengthOpen
939003 mmStub6 mm38 mm
938003 mmStandard12 mm38 mm
938014 mmStandard14 mm50 mm
938025 mmStandard16 mm64 mm
938036 mmStandard20 mm64 mm
939048 mmStub16 mm50 mm
938048 mmStandard22 mm64 mm
9390510 mmStub18 mm50 mm
9380510 mmStandard25 mm64 mm
3421312 mmStub20 mm63 mm
9390612 mmStub20 mm63 mm
9380612 mmStandard27 mm76 mm
9390716 mmStub25 mm89 mm
9380716 mmStandard38 mm100 mm
9390820 mmStub30 mm100 mm
9380820 mmStandard40 mm100 mm

Best Applications

How the Intimidator maps across ISO-513 material groups and machining operations.

Recommended for
PSteels
Also applicableM StainlessS Super AlloysS Titanium
Not suited for Composites · Plastics

Frequently Asked Questions

It's designed for Stainless Steels, Steels, Super Alloys (Nickel based, Inconel), and Titanium.

It's stocked with FC18 coating. Our FC18 coating is built for high-speed machining with outstanding oxidation resistance, hot hardness, and wear resistance. Ideal for stainless steels, alloy steels, titanium, and hardened steels.

It's available in Chamfer, Corner Radius, Square.

The 3000 Intimidator is a 4-flute tool.

The 3000 Intimidator has a helix angle of 38.00°.

The 3000 Intimidator holds a shank tolerance of h6 and a cutter tolerance of +.0000"/-.002" | +0.00mm/-0.05mm.
