High Performance

5566MATRXDrill

5566 MATRX Poly Dill

Our MATRX Poly Drill excels in burr-free drilling of graphite, composites, and plastics.

OComposites3 Flute
MATRX

The 5566 MATRX Poly Drill is a 3-flute, high-performance drill designed for composites, graphite, plastics, and wood. Its geometry produces clean, burr-free holes while minimizing breakout, helping reduce or eliminate secondary sanding and deburring operations.

Key Features
01
90° Point
02
Single Margin prevents long chips in aluminum and stainless steels.

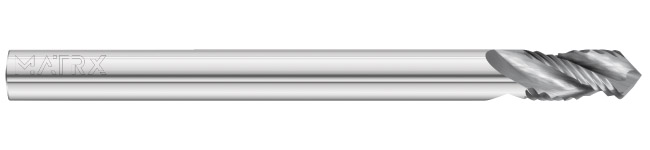

5566 MATRX full length
03
Produces clean, burr-free holes without breakout, eliminating the need for sanding or deburring.
04
FC1 Coating that excels in carbon fiber reinforced polymers (CFRP), metal matrix composites (MMC), high-silicon aluminum alloys, and many other difficult to machining non-ferrous applications.
The MATRX Lineup/ 48 tools
Varies by Size
Cutting Diameter
0.1910"TO0.5156"
Shank Diameter
0.1969"TO0.5156"
Flute Length
1.0000"TO1.5000"
Overall Length
3.9370"TO6.0000"
Consistent Across the Series
GradeHigh Performance
Flutes3
Spiral DirectionRight Hand Spiral
Helix Angle30.00°
Shank Tolerance+.0000"/-.0005"
Cutting Tolerance+.0000"/-.001"
Built to CutOComposites

Filter by diameter, length, coating and more — then check live pricing.

Explore this series

Resources

Access the information you need to put the MATRX to work.

Every 5566 EDP

48 EDPs in the MATRX
EDPDiameterFlute lengthOverall lengthOpen
253190.1910"1"4"
253221/4"1-1/2"4"
253031/4"1-1/2"4"
253040.2520"1-1/2"4"
253230.2520"1-1/2"4"
2533917/64"1-1/2"4"
2533817/64"1-1/2"4"
253409/32"1-1/2"4"
253419/32"1-1/2"4"
253275/16"1-1/2"4-1/2"
253085/16"1-1/2"4-1/2"
253433/8"1-1/2"5"
253423/8"1-1/2"5"
2534425/64"1-1/2"5"
2534525/64"1-1/2"5"
253467/16"1-1/2"6"
253477/16"1-1/2"6"
253181/2"1-1/2"6"
253371/2"1-1/2"6"
2534933/64"1-1/2"6"
2534833/64"1-1/2"6"
EDPDiameterFlute lengthOverall lengthOpen
253015 mm32 mm100 mm
253205 mm32 mm100 mm
253026 mm32 mm100 mm
253216 mm32 mm100 mm
253056.5 mm38 mm105 mm
253246.5 mm38 mm105 mm
253067 mm38 mm105 mm
253257 mm38 mm105 mm
253077.5 mm38 mm110 mm
253267.5 mm38 mm110 mm
253098 mm38 mm115 mm
253288 mm38 mm115 mm
253108.5 mm38 mm120 mm
253298.5 mm38 mm120 mm
253119 mm38 mm125 mm
253129.5 mm38 mm125 mm
253319.5 mm38 mm125 mm
2531310 mm38 mm130 mm
2533210 mm38 mm130 mm
2531410.5 mm38 mm137 mm
2533310.5 mm38 mm137 mm
2531511 mm38 mm140 mm
2533411 mm38 mm140 mm
2531611.5 mm38 mm143 mm
2533511.5 mm38 mm143 mm
2531712 mm38 mm150 mm
2533612 mm38 mm150 mm

Best Applications

How the MATRX maps across ISO-513 material groups and machining operations.

Recommended for
OComposites
Also applicableO GraphiteO PlasticsO Wood
Not suited for Steels · Stainless · Cast Iron · Brass & Copper · High-Si Aluminum · Low-Si Aluminum +3

Frequently Asked Questions

It's designed for Composites, Graphite, Plastics, and Wood.

It's stocked with FC1 coating. Our FC1 coating is a thin-film CVD diamond coating engineered for abrasive materials. Ideal for graphite, green ceramics, CFRP, fiberglass, metal matrix composites, and cast aluminum alloys. Suitable for many dry machining applications.

It's available in Notched.

The 5566 MATRX Poly Dill is a 3-flute tool.

The 5566 MATRX Poly Dill has a helix angle of 30.00°.

The 5566 MATRX Poly Dill holds a shank tolerance of +.0000"/-.0005" | +0.000mm/-0.013mm and a cutter tolerance of +.0000"/-.001" | +0.00mm/-0.025mm.
