2305Center Drill

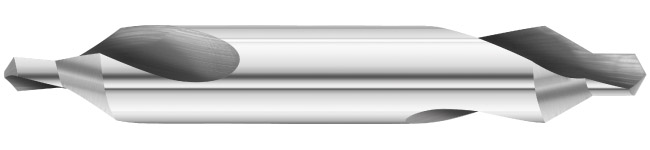

2305 Center Drill
Our Center Drill is a combination drill and countersink, centering and chamfering in one single operation.

The 2305 Center Drill is a 2-flute, general-purpose drill designed for titanium, hardened steels, stainless steels, steels, cast iron, graphite, brass, copper, aluminum, composites, plastics, and wood. Available with 60°, 82°, and 90° point angles, it is stocked uncoated or with a TiAlN coating.

Filter by diameter, length, coating and more — then check live pricing.
Explore this seriesResources
Access the information you need to put the Center Drill to work.
Every 2305 EDP
| EDP | Diameter | Overall length | Coating | Open |
|---|---|---|---|---|
| 23000 | 0.0200" | 1-1/2" | ||
| 23004 | 0.0200" | 1-1/2" | ||
| 23109 | 0.0200" | 1-1/2" | ||
| 23003 | 0.0250" | 1-1/2" | ||
| 23005 | 0.0250" | 1-1/2" | ||
| 23110 | 0.0250" | 1-1/2" | ||
| 23001 | 0.0250" | 1-1/2" | ||
| 23300 | 1/32" | 1-1/2" | ||
| 23111 | 1/32" | 1-1/2" | ||
| 23100 | 1/32" | 1-1/2" | ||
| 23101 | 3/64" | 1-1/2" | ||
| 23201 | 3/64" | 1-1/2" | ||
| 23112 | 3/64" | 1-1/2" | ||
| 23301 | 3/64" | 1-1/2" | ||
| 23120 | 3/64" | 4" | ||
| 23121 | 3/64" | 4" | ||
| 23302 | 5/64" | 2" | ||
| 23113 | 5/64" | 2" | ||
| 23102 | 5/64" | 2" | ||
| 23122 | 5/64" | 4" | ||
| 23123 | 5/64" | 4" | ||
| 23114 | 7/64" | 2" | ||
| 23303 | 7/64" | 2" | ||
| 23103 | 7/64" | 2" | ||
| 23124 | 7/64" | 4" | ||
| 23125 | 7/64" | 4" | ||
| 23115 | 1/8" | 2-1/8" | ||
| 23304 | 1/8" | 2-1/8" | ||
| 23104 | 1/8" | 2-1/8" | ||
| 23126 | 1/8" | 6" | ||
| 23127 | 1/8" | 6" | ||
| 23105 | 3/16" | 2-3/4" | ||
| 23305 | 3/16" | 2-3/4" | ||
| 23116 | 3/16" | 2-3/4" | ||
| 23128 | 3/16" | 6" | ||
| 23129 | 3/16" | 6" | ||
| 23206 | 7/32" | 3" | ||
| 23306 | 7/32" | 3" | ||
| 23117 | 7/32" | 3" | ||
| 23106 | 7/32" | 3" | ||
| 23130 | 7/32" | 6" | ||
| 23131 | 7/32" | 6" | ||
| 23307 | 1/4" | 3-1/4" | ||
| 23118 | 1/4" | 3-1/4" | ||
| 23107 | 1/4" | 3-1/4" | ||
| 23207 | 1/4" | 3-1/4" | ||
| 23132 | 1/4" | 6" | ||
| 23133 | 1/4" | 6" | ||
| 23119 | 5/16" | 3-1/2" | ||
| 23108 | 5/16" | 3-1/2" | ||
| 23308 | 5/16" | 3-1/2" | ||
| 23134 | 5/16" | 6" | ||
| 23135 | 5/16" | 6" |
Best Applications
How the Center Drill maps across ISO-513 material groups and machining operations.
Frequently Asked Questions
It's designed for Brass & Copper, Cast Iron, Composites, Graphite, Hardened Steels > 48 RC, High Si Aluminum > 10%, Low Si Aluminum < 10%, Plastics, Stainless Steels, Steels, Titanium, and Wood.
It's stocked Uncoated and with TiAlN - Titanium Aluminum Nitride.
It's available in Cam Relieved.
The 2305 Center is a 2-flute tool.
The 2305 Center has a helix angle of 25.00°.
The 2305 Center holds a shank tolerance of h6 and a cutter tolerance of +.0030"/-.0000" | +0.08mm/-0.00mm.
