1565AlumaDrill

1565 AlumaDrill

Our AlumaDrill excels in high-speed drilling in titanium, graphite, brass & copper, high si aluminum, low si aluminum, composites, plastics, and wood.

NBrass & CopperOCompositesSTitanium3 Flute
AlumaDrill

The 1565 AlumaDrill is a 3-flute, high-performance drill designed for high-speed holemaking in titanium, graphite, brass, copper, high- and low-silicon aluminum, composites, plastics, and wood. Its geometry supports aggressive material removal and efficient chip evacuation, while unique radial grinds provide self-centering performance and improve cutting action in softer materials.

Key Features
01
90° Point
02
Single Margin prevents long chips in aluminum and stainless steels.

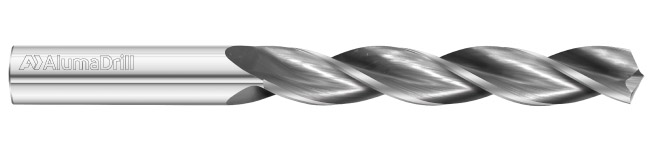

1565 AlumaDrill full length
03
Produces clean, burr-free holes without breakout, eliminating the need for sanding or deburring.
The AlumaDrill Lineup/ 146 tools
Varies by Size
Cutting Diameter
0.0625"TO1.0000"
Shank Diameter
0.0625"TO1.0000"
Flute Length
0.6299"TO4.0000"
Overall Length
1.4961"TO6.0000"
Consistent Across the Series
GradeHigh Performance
Flutes3
Spiral DirectionRight Hand Spiral
Helix Angle30.00°
Shank Tolerance+.0000"/-.0005"
Cutting Tolerance+.0000"/-.0005"
CoatingUncoated
Built to CutNBrass & CopperOCompositesSTitanium

Filter by diameter, length, coating and more — then check live pricing.

Explore this series

Resources

Access the information you need to put the AlumaDrill to work.

Every 1565 EDP

146 EDPs in the AlumaDrill
EDPDiameterLengthFlute lengthOverall lengthOpen
154241/16"Standard3/4"1-1/2"
190000.0670"Standard3/4"1-1/2"
190010.0730"Standard7/8"1-3/4"
154255/64"Standard7/8"1-3/4"
190030.0820"Standard7/8"1-3/4"
154450.0890"Standard1"2"
154263/32"Standard1"2"
156000.0980"Standard1-1/4"2-1/4"
156010.1065"Standard1-1/4"2-1/4"
154277/64"Standard1-1/4"2-1/4"
156020.1130"Standard1-1/4"2-1/4"
190081/8"Stub7/8"1-1/2"
154281/8"Standard1-1/4"2-1/4"
156030.1285"Standard1-3/8"2-1/2"
156040.1360"Standard1-3/8"2-1/2"
154299/64"Standard1-3/8"2-1/2"
156050.1495"Standard1-3/8"2-1/2"
190100.1520"Standard1-3/8"2-1/2"
154305/32"Standard1-3/8"2-1/2"
156060.1570"Standard1-3/8"2-1/2"
190120.1590"Standard1-3/8"2-1/2"
1543111/64"Standard1-5/8"2-3/4"
190140.1730"Standard1-5/8"2-3/4"
190150.1770"Standard1-5/8"2-3/4"
190160.1800"Standard1-5/8"2-3/4"
190183/16"Stub1"2"
154323/16"Standard1-5/8"2-3/4"
190190.1960"Standard1-3/4"3"
190200.1990"Standard1-3/4"3"
152260.2010"Standard1-3/4"3"
1543313/64"Standard1-3/4"3"
156070.2130"Standard1-3/4"3"
154347/32"Standard1-3/4"3"
190220.2280"Standard1-3/4"3"
1543515/64"Standard2"3-1/4"
190241/4"Stub1-1/4"2-1/2"
154361/4"Standard2"3-1/4"
156080.2570"Standard2-1/8"3-1/2"
156090.2720"Standard2-1/8"3-1/2"
154379/32"Standard2-1/8"3-1/2"
190295/16"Stub1-5/8"3"
154385/16"Standard2-3/8"4"
190310.3320"Standard2-1/2"4"
1543911/32"Standard2-1/2"4"
152270.3680"Standard2-1/2"4"
190333/8"Stub1-3/4"3"
154403/8"Standard2-1/2"4"
1903425/64"Standard2-7/8"4-1/2"
1544113/32"Standard2-7/8"4-1/2"
1522827/64"Standard2-7/8"4-1/2"
154427/16"Standard2-7/8"4-1/2"
1544629/64"Standard3"4-3/4"
1544315/32"Standard3"4-3/4"
1522931/64"Standard3"4-3/4"
190581/2"Stub2"4"
154441/2"Standard3"4-3/4"
154891/2"Standard4"6"
1904333/64"Standard3-1/4"5"
1549017/32"Standard4"6"
154919/16"Standard4"6"
1904737/64"Standard4"6"
1549219/32"Standard4"6"
190505/8"Stub2-5/8"4-1/2"
154935/8"Standard4"6"
1549421/32"Standard4"6"
1549511/16"Standard4"6"
1549623/32"Standard4"6"
190553/4"Stub2-5/8"4-1/2"
154973/4"Standard4"6"
1523049/64"Standard4"6"
154987/8"Standard4"6"
154991"Standard4"6"
EDPDiameterLengthFlute lengthOverall lengthOpen
190022 mmStandard25 mm50 mm
190042.3 mmStandard25 mm50 mm
190592.5 mmStandard16 mm50 mm
190052.6 mmStandard32 mm57 mm
190632.8 mm7 x Diam32 mm57 mm
190062.9 mmStandard32 mm57 mm
190073 mmStub22 mm38 mm
156753 mmStandard32 mm57 mm
152313.3 mmStandard35 mm64 mm
190093.7 mmStandard35 mm64 mm
190114 mmStub23 mm50 mm
156774 mmStandard35 mm64 mm
152324.2 mmStandard45 mm76 mm
190134.3 mmStandard45 mm76 mm
190174.6 mmStandard45 mm76 mm
190604.7 mmStandard45 mm76 mm
152994.8 mm7 x Diam45 mm76 mm
156835 mmStandard45 mm76 mm
190215.2 mmStandard50 mm82 mm
190665.3 mm7 x Diam50 mm82 mm
152985.5 mm7 x Diam50 mm82 mm
190615.6 mmStandard50 mm82 mm
190645.8 mm7 x Diam50 mm82 mm
190236 mmStub32 mm64 mm
156886 mmStandard50 mm82 mm
152966.2 mm7 x Diam54 mm100 mm
152956.4 mm7 x Diam54 mm100 mm
152976.5 mm7 x Diam54 mm100 mm
152946.6 mm7 x Diam54 mm100 mm
152336.8 mmStandard54 mm100 mm
190257 mmStub36 mm76 mm
156897 mmStandard54 mm100 mm
190267.3 mmStandard54 mm100 mm
190277.4 mmStandard54 mm100 mm
190287.5 mmStandard54 mm100 mm
152347.8 mmStandard60 mm100 mm
190308 mmStub40 mm76 mm
156908 mmStandard60 mm100 mm
190658.3 mm7 x Diam63 mm100 mm
152358.5 mmStandard63 mm100 mm
190329 mmStandard63 mm100 mm
190629.3 mmStandard63 mm100 mm
152939.4 mm7 x Diam63 mm100 mm
152369.5 mmStandard63 mm100 mm
1903510 mmStub44 mm76 mm
1569110 mmStandard63 mm100 mm
1523710.2 mmStandard73 mm125 mm
1903610.6 mmStandard73 mm125 mm
1524211 mmStandard73 mm125 mm
1903711.3 mmStandard73 mm125 mm
1903812 mmStub50 mm100 mm
1569212 mmStandard76 mm125 mm
1903912.1 mmStandard76 mm125 mm
1904012.5 mmStandard76 mm125 mm
1904212.8 mmStandard76 mm125 mm
1524413 mmStandard76 mm125 mm
1904413.2 mmStandard76 mm125 mm
1904513.6 mmStandard76 mm125 mm
1523814 mmStandard101 mm150 mm
1904614.5 mmStandard101 mm150 mm
1904814.8 mmStandard101 mm150 mm
1569415 mmStandard101 mm150 mm
1904915.2 mmStandard101 mm150 mm
1523915.5 mmStandard101 mm150 mm
1905116 mmStub67 mm112.5 mm
1569516 mmStandard101 mm150 mm
1569616.5 mmStandard101 mm150 mm
1569717 mmStandard101 mm150 mm
1524017.5 mmStandard101 mm150 mm
1905217.9 mmStandard101 mm150 mm
1905318.4 mmStandard101 mm150 mm
1905619.2 mmStandard101 mm150 mm
1905720 mmStub67 mm125 mm
1569820 mmStandard101 mm150 mm

Best Applications

How the AlumaDrill maps across ISO-513 material groups and machining operations.

Best choice for
NBrass & CopperNLow-Si AluminumOPlasticsOWood
Also recommendedN High-Si AluminumS TitaniumO Graphite
Also applicableO Composites
Not suited for Steels · Cast Iron · Hardened

Frequently Asked Questions

It's designed for Brass & Copper, Composites, Graphite, High Si Aluminum > 10%, Low Si Aluminum < 10%, Plastics, Titanium, and Wood.

The 1565 AlumaDrill is a 3-flute tool.

The 1565 AlumaDrill has a helix angle of 30.00°.

The 1565 AlumaDrill holds a shank tolerance of +.0000"/-.0005" | +0.000mm/-0.013mm and a cutter tolerance of +.0000"/-.0005" | +0.000mm/-0.013mm.
