1535 Spotting Drill

Our Spotting Drill is designed for use in titanium, hardened steels, stainless steels, steels, cast iron, graphite, brass & copper, composites, and wood.

HHardened Steels > 48 RCKCast IronMStainless SteelsNBrass & CopperOCompositesPSteelsSTitanium2 Flute
Spotting Drill

The 1535 Spotting Drill is a 2-flute, general-purpose drill designed for screw machine and Swiss-style lathe applications across a broad range of materials. Available with 90°, 120°, 142°, and 150° point angles, it supports accurate hole starting in titanium, hardened steels, stainless steels, steels, cast iron, graphite, brass, copper, aluminum, composites, plastics, and wood. The 1535 is available uncoated or with an FC7 coating.

Key Features
01
90°, 120°, 142°, 150° Point Angles
02
Single Margin prevents long chips in aluminum and stainless steels.

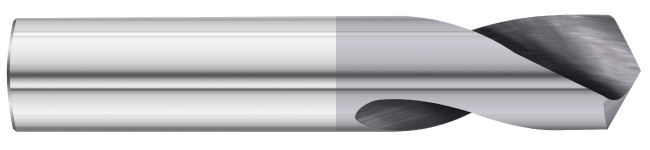

1535 Spotting Drill full length
03
Preferred design for screw machine and Swiss lathe applications.
04
FC7 Coating provides hot hardness and high oxidation resistance with outstanding frictional properties and is ideal in deep hole applications.
The Spotting Drill Lineup/ 70 tools
Varies by Size
Cutting & Shank Diameter
0.1181"TO0.7500"
Flute Length
0.3937"TO1.5000"
Overall Length
2.5000"TO4.0000"
Point Angle
90.00TO150.00
Consistent Across the Series
GradeGeneral Purpose
Flutes2
Spiral DirectionRight Hand Spiral
Helix Angle25.00°
Shank Tolerance+.0000"/-.0005"
Cutting Tolerance+.0000"/-.0005"
Built to CutHHardened Steels > 48 RCKCast IronMStainless SteelsNBrass & CopperOCompositesPSteelsSTitanium

Filter by diameter, length, coating and more — then check live pricing.

Explore this series

Resources

Access the information you need to put the Spotting Drill to work.

Every 1535 EDP

70 EDPs in the Spotting Drill
EDPDiameterLengthFlute lengthOverall lengthOpen
154501/8"Standard5/8"2-1/2"
157361/8"Standard5/8"2-1/2"
153501/8"Standard5/8"2-1/2"
153331/8"5 x Diam5/8"2-1/2"
154511/8"Standard5/8"2-1/2"
154523/16"Standard3/4"2-1/2"
157583/16"Standard3/4"2-1/2"
153533/16"Standard3/4"2-1/2"
153173/16"3 x Diam3/4"2-1/2"
154533/16"Standard3/4"2-1/2"
153621/4"Standard1"2-1/2"
153631/4"Standard1"2-1/2"
157491/4"Standard1"2-1/2"
157741/4"Standard1"2-1/2"
153201/4"3 x Diam1"2-1/2"
154621/4"Standard1"2-1/2"
154631/4"Standard1"2-1/2"
153645/16"Standard1"2-1/2"
153675/16"Standard1"2-1/2"
157785/16"Standard1"2-1/2"
153215/16"3 x Diam1"2-1/2"
154645/16"Standard1"2-1/2"
154665/16"Standard1"2-1/2"
157823/8"Standard1-1/4"3"
153683/8"Standard1-1/4"3"
153693/8"Standard1-1/4"3"
154683/8"Standard1-1/4"3"
154693/8"Standard1-1/4"3"
157513/8"Standard1-1/4"3"
153233/8"3 x Diam1-1/4"3"
153771/2"Standard1-1/4"3"
157901/2"Standard1-1/4"3"
153731/2"Standard1-1/4"3"
154731/2"Standard1-1/4"3"
154771/2"Standard1-1/4"3"
157521/2"Standard1-1/4"3"
154491/2"3 x Diam1-1/4"3"
153753/4"Standard1-1/2"4"
157083/4"Standard1-1/2"4"
157093/4"Standard1-1/2"4"
154763/4"3 x Diam1-1/2"4"
157533/4"Standard1-1/2"4"
154753/4"Standard1-1/2"4"
157073/4"Standard1-1/2"4"
EDPDiameterLengthFlute lengthOverall lengthOpen
153543 mmStandard10 mm64 mm
153573 mmStandard10 mm64 mm
154543 mmStandard10 mm64 mm
154573 mmStandard10 mm64 mm
153323 mm5 x Diam10 mm64 mm
153554 mmStandard12 mm64 mm
154584 mmStandard12 mm64 mm
153164 mm3 x Diam12 mm64 mm
154554 mmStandard12 mm64 mm
157044 mmStandard12 mm64 mm
153185 mm3 x Diam25 mm64 mm
154565 mmStandard25 mm64 mm
154605 mmStandard25 mm64 mm
154596 mmStandard25 mm64 mm
153196 mm3 x Diam25 mm64 mm
154616 mmStandard25 mm64 mm
153228 mm3 x Diam25 mm64 mm
154658 mmStandard25 mm64 mm
154678 mmStandard25 mm64 mm
1547010 mmStandard32 mm76 mm
1532410 mm3 x Diam32 mm76 mm
1547110 mmStandard32 mm76 mm
1570612 mmStandard32 mm76 mm
1547212 mmStandard32 mm76 mm
1537612 mm3 x Diam32 mm76 mm
1547412 mmStandard32 mm76 mm

Best Applications

How the Spotting Drill maps across ISO-513 material groups and machining operations.

Applicable for
PSteelsMStainlessKCast IronNBrass & CopperNHigh-Si AluminumNLow-Si Aluminum +6 more

Frequently Asked Questions

It's designed for Brass & Copper, Cast Iron, Composites, Graphite, Hardened Steels > 48 RC, High Si Aluminum > 10%, Low Si Aluminum < 10%, Plastics, Stainless Steels, Steels, Titanium, and Wood.

It's stocked Uncoated and with FC7 coating.

It's available in Cam Relieved.

The 1535 Spotting is a 2-flute tool.

The 1535 Spotting has a helix angle of 25.00°.

The 1535 Spotting holds a shank tolerance of +.0000"/-.0005" | +0.000mm/-0.013mm and a cutter tolerance of +.0000"/-.0005" | +0.000mm/-0.013mm.
