High Performance

1505DominatorDrill

1505 Dominator Drill

Our Dominator drill holds tight tolerance holes while eliminating the need for reaming in steels, stainless steels, super alloys, and titanium.

HHardened Steels > 48 RCKCast IronMStainless SteelsNBrass & CopperOGraphitePSteelsSSuper Alloys (Nickel based, Inconel)2 Flute
Dominator

The 1505 Dominator is a 2-flute, high-performance drill designed for steels, stainless steels, hardened steels above 48 HRC, titanium, nickel-based superalloys, cast iron, brass, copper, graphite, high- and low-silicon aluminum, and wood. Its application-specific geometry supports tight hole tolerances and may eliminate the need for a secondary reaming operation. The design also improves surface finish, chip evacuation, and coolant flow in demanding holemaking applications.

Key Features
01
144° Dominator Point
02
Double Margin provides a tighter tolerance hole and an overall better finish.

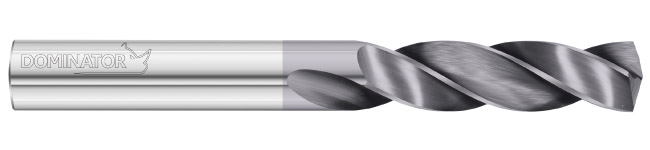

1505 Dominator full length
03
FC-7 Coating provides hot hardness and high oxidation resistance with outstanding frictional properties and is ideal in deep hole applications.
The Dominator Lineup/ 79 tools
Varies by Size
Cutting Diameter
0.1065"TO0.8750"
Shank Diameter
0.1181"TO0.8750"
Flute Length
0.5625"TO4.0000"
Useable Length
0.4688"TO3.5000"
Overall Length
2.0000"TO6.0000"
Coolant
Consistent Across the Series
GradeHigh Performance
Flutes2
Spiral DirectionRight Hand Spiral
Helix Angle30.00°
Shank Toleranceh6
Cutting Tolerance+.0000"/-.0005"
CoatingFC7
Built to CutHHardened Steels > 48 RCKCast IronMStainless SteelsNBrass & CopperOGraphitePSteelsSSuper Alloys (Nickel based, Inconel)

Filter by diameter, length, coating and more — then check live pricing.

Explore this series

Resources

Access the information you need to put the Dominator to work.

Every 1505 EDP

79 EDPs in the Dominator
EDPDiameterFlute lengthOverall lengthOpen
150030.1065"9/16"2"
150061/8"5/8"2"
152510.1590"13/16"3"
152520.1770"7/8"3"
152573/16"15/16"3"
153293/16"1-5/16"3-1/4"
156150.2010"1-1/2"3"
1565313/64"1-1/2"3"
152590.2055"1"3"
152600.2130"1-3/32"3"
152637/32"1-3/32"3"
153300.2210"1-3/32"3"
156141/4"1-1/2"3"
156361/4"2-3/8"4"
156160.2570"1-1/2"3"
155290.2570"1-1/2"3"
156380.2570"2-3/8"4"
1561717/64"1-1/2"3"
156180.2720"1-1/2"3"
156400.2720"2-3/8"4"
156219/32"1-1/2"3"
153399/32"2"4"
1562319/64"1-1/2"3"
156205/16"1-1/2"3"
156425/16"2-3/8"4"
156510.3230"2"4"
1562521/64"2"4"
1562911/32"2"4"
1563023/64"2"4"
1534923/64"2-1/2"4"
151750.3680"2"4"
153780.3680"2-1/2"4"
156223/8"2"4"
156443/8"2-1/2"4"
1563125/64"2-1/4"4"
1538025/64"2-3/4"4-1/2"
1563313/32"2-1/4"4"
1538213/32"2-3/4"4-1/2"
1562427/64"2-1/4"4"
1564627/64"2-1/2"4"
156267/16"2-1/4"4"
156487/16"2-1/2"4"
1563529/64"2-1/2"4-1/2"
1567915/32"2-1/2"4-1/2"
1538815/32"3-1/4"5"
1568131/64"2-1/2"4-1/2"
1538931/64"3-3/8"5"
156281/2"2-1/2"4-1/2"
156501/2"3-1/2"6"
1539317/32"4"6"
1517617/32"4"6"
156529/16"4"6"
156939/16"4"6"
156545/8"4"6"
156855/8"4"6"
1517721/32"4"6"
1568611/16"4"6"
156873/4"4"6"
156563/4"4"6"
1517849/64"4"6"
151797/8"4"6"
EDPDiameterFlute lengthOverall lengthOpen
157103 mm38 mm76 mm
151803.3 mm38 mm76 mm
157114 mm38 mm76 mm
151814.2 mm38 mm76 mm
157125 mm38 mm76 mm
156135 mm38 mm76 mm
156106 mm38 mm76 mm
157136 mm50 mm101 mm
152646.5 mm32 mm76 mm
156196.8 mm38 mm76 mm
156128 mm38 mm76 mm
157158 mm63 mm101 mm
1563710 mm57 mm100 mm
1563210.2 mm57 mm125 mm
1568012 mm63 mm125 mm
1571815 mm101 mm150 mm
1563915 mm101 mm150 mm
1571916 mm101 mm150 mm

Best Applications

How the Dominator maps across ISO-513 material groups and machining operations.

Recommended for
PSteelsMStainlessKCast IronSSuper AlloysSTitaniumHHardened
Also applicableN Brass & CopperN High-Si AluminumN Low-Si AluminumO GraphiteO Wood
Not suited for Composites

Frequently Asked Questions

It's designed for Brass & Copper, Cast Iron, Graphite, Hardened Steels > 48 RC, High Si Aluminum > 10%, Low Si Aluminum < 10%, Stainless Steels, Steels, Super Alloys (Nickel based, Inconel), Titanium, and Wood.

It's stocked with FC7 coating. Our FC7 coating offers excellent hot hardness, oxidation resistance, and low friction. Well-suited for deep-hole machining applications where heat management is critical.

It's available in Notched.

The 1505 Dominator is a 2-flute tool.

The 1505 Dominator has a helix angle of 30.00°.

The 1505 Dominator holds a shank tolerance of h6 and a cutter tolerance of +.0000"/-.0005" | +0.000mm/-0.013mm.
