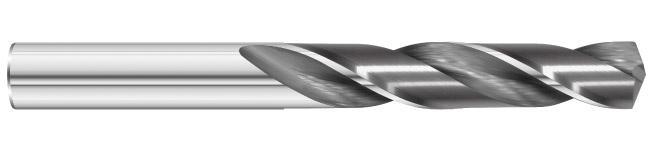

1500 Notched Cam Point Drill

The Notched Cam Point excels in brass & copper, cast iron, composites, graphite, and hardened steels.

Tool Specifications
Grade |
General Performance
End Style |
135 Degree Notched Cam Point
Number Of Flutes |
2 Flutes
Lengths |
Screw Machine, Standard
Coating |
Uncoated, FC-7, TIALN
Single/Double End |
Single End
Spiral Direction |
Right Hand
Helix Angle |
30 Degree
Dimension Type |
Imperial, Metric
Shank Tolerance |
Shanks are not precision ground and are intended for use in three jaw chucks and Collet holders only.
Cutting Tolerance |
+.0000"/-.0005" | +0.000mm/-0.013mm

Application Check

The 1500 Notched Cam Point is a 2-flute, general purpose drill designed to withstand a variety of materials, including titanium, hardened steels, stainless steels, cast iron, and brass & copper. Its robust notched cam point and 30° spiral allows for higher feed rates and increased tool life. The 1500 Notched Cam Point is stocked uncoated, and with FC-7 and TiAlN coating.
