High Performance

3600ForceEnd Mill

3600 Force End Mill

Our Force high-performance end mill produces excellent surface finishes and chip control in hardened steels and super alloys.

HHardened Steels > 48 RCKCast IronMStainless SteelsPSteelsSSuper Alloys (Nickel based, Inconel)5, 7, 9 Flute
Force

The 3600 Force is a high-performance end mill available with 5, 7, or 9 flutes for cast iron, steels, stainless steels, hardened steels above 48 HRC, titanium, and nickel-based super alloys, including Inconel. Its optimized geometry supports higher feed rates while delivering consistent chip control and surface finishes in demanding stainless steel, super alloy, and titanium applications.

Key Features
01
Variable Helix and Unequal Index helps reduce harmonics and chatter.
02
Flat Ground Relief provides good edge strength and high degree of relief behind cutting edge.
03
Drill Edge provides a stronger flute and aids chip evacuation.

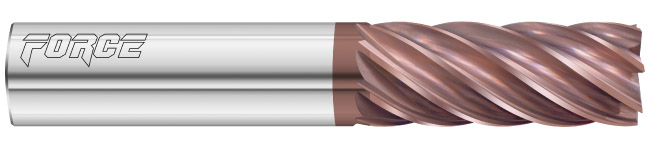

3600 Force full length
04
Protected Corner prevents premature breakdown of a corner radius.
05
Multi-flute based on diameter.
The Force Lineup/ 52 tools
Varies by Size
Cutting & Shank Diameter
0.2362"TO1.0000"
Flute Length
0.3750"TO3.0000"
Overall Length
2.5000"TO6.0000"
Radius
0.0150"TO0.1200"
Number of Flutes
5TO9
Consistent Across the Series
GradeHigh Performance
Spiral DirectionRight Hand Spiral
Helix AngleVariable
Cutting TypeCenter
Shank Toleranceh6
Cutting Tolerance+.0000"/-.002"
CoatingFC20
Built to CutHHardened Steels > 48 RCKCast IronMStainless SteelsPSteelsSSuper Alloys (Nickel based, Inconel)

Filter by diameter, length, coating and more — then check live pricing.

Explore this series

Resources

Access the information you need to put the Force to work.

Every 3600 EDP

52 EDPs in the Force
EDPDiameterLengthFlute lengthOverall lengthRadiusFlutesOpen
362001/4"Stub3/8"2-1/2"0.0150"5
362011/4"Standard1"3"0.0150"5
362023/8"Standard3/4"2-1/2"0.0150"7
362033/8"Extra-Long1-1/8"3"0.0150"7
362081/2"Stub5/8"2-1/2"0.0150"7
362091/2"Stub5/8"2-1/2"0.0300"7
362101/2"Stub5/8"2-1/2"0.0600"7
362681/2"Standard1"3"0.0300"7
362771/2"Standard1-1/4"3"0.0300"7
362781/2"Standard1-1/4"3"0.0600"7
362791/2"Standard1-1/4"3"0.1200"7
362111/2"Standard1-1/2"4"0.0150"7
362121/2"Standard1-1/2"4"0.0300"7
362145/8"Stub3/4"3-1/2"0.0300"9
362155/8"Stub3/4"3-1/2"0.0600"9
362165/8"Extra-Long1-7/8"5"0.0300"9
362175/8"Extra-Long1-7/8"5"0.0600"9
362213/4"Standard1"4"0.0900"9
362223/4"Standard1"4"0.1200"9
362713/4"Standard1-5/8"4"0.0150"9
362733/4"Standard1-5/8"4"0.0900"9
362233/4"Extra-Long2-1/4"5"0.0600"9
362253/4"Extra-Long2-1/4"5"0.1200"9
362411"Extra-Long3"6"0.0600"9
EDPDiameterLengthFlute lengthOverall lengthRadiusFlutesOpen
362826 mmStandard20 mm76 mm1 mm5
362848 mmStandard22 mm76 mm0.5 mm7
362918 mmStandard30 mm76 mm0.5 mm7
3620410 mmStandard20 mm64 mm0.5 mm7
3620510 mmStandard30 mm76 mm0.5 mm7
3629610 mmStandard30 mm76 mm1.5 mm7
3628812 mmExtra-Long36 mm100 mm0.5 mm7
3620712 mmExtra-Long36 mm100 mm1 mm7
3628912 mmExtra-Long36 mm100 mm2.5 mm7
3621816 mmStub20 mm89 mm1.5 mm9
3622720 mmStub25 mm100 mm2.5 mm9
EDPDiameterLengthFlute lengthOverall lengthFlutesOpen
362451/4"Standard1"3"5
362463/8"Standard3/4"2-1/2"7
362473/8"Extra-Long1-1/8"3"7
362521/2"Stub5/8"2-1/2"7
362661/2"Standard1"3"7
362531/2"Standard1-1/2"4"7
362545/8"Stub3/4"3-1/2"9
362555/8"Extra-Long1-7/8"5"9
362593/4"Extra-Long2-1/4"5"9
362651"Extra-Long3"6"9
EDPDiameterLengthFlute lengthOverall lengthFlutesOpen
362806 mmStandard20 mm76 mm5
362838 mmStandard22 mm76 mm7
3624810 mmStandard20 mm64 mm7
3624910 mmStandard30 mm76 mm7
3625112 mmExtra-Long36 mm100 mm7
3625716 mmExtra-Long48 mm125 mm9
3626325 mmExtra-Long75 mm150 mm9

Best Applications

How the Force maps across ISO-513 material groups and machining operations.

RghFinSlotPlngHEM
PSteels
HHardened
MStainless
KCast Iron
SSuper Alloys
Also applicable Titanium
Not suitedCompositesGraphitePlastics

Frequently Asked Questions

It's designed for Cast Iron, Hardened Steels > 48 RC, Stainless Steels, Steels, Super Alloys (Nickel based, Inconel), and Titanium.

It's stocked with FC20 coating. Our FC20 coating combines high hardness, elasticity, oxidation resistance, and low friction for dependable performance. Excellent for stainless steels and nickel-based high-temperature alloys.

It's available in Corner Radius, Square.

The 3600 Force is available in 5, 7, or 9 flutes.

The 3600 Force uses a variable helix angle.

The 3600 Force holds a shank tolerance of h6 and a cutter tolerance of +.0000"/-.002" | +0.00mm/-0.05mm.
