High Performance

3500FuryEnd Mill

3500 Fury End Mill

Our Fury high-performance end mill performs exceptionally in high-speed machining and full diameter milling in hardened steels, super alloys, stainless steels, and steels.

HHardened Steels > 48 RCKCast IronMStainless SteelsNBrass & CopperPSteelsSSuper Alloys (Nickel based, Inconel)4 Flute
Fury

The 3500 Fury is a versatile 4-flute, high-performance end mill designed for high-speed and full-diameter milling in steels, stainless steels, hardened steels above 48 HRC, titanium, nickel-based super alloys, Inconel, cast iron, brass, and copper. Its protected corner helps prevent premature breakdown of the corner radius, while a specialized drill edge strengthens the flute and improves chip evacuation. The result is consistent surface finishes, longer tool life, fewer tool changes, and increased productivity across demanding applications.

Key Features
01
Variable Helix and Unequal Index helps reduce harmonics and chatter.
02
Flat Ground Relief provides good edge strength and high degree of relief behind cutting edge.

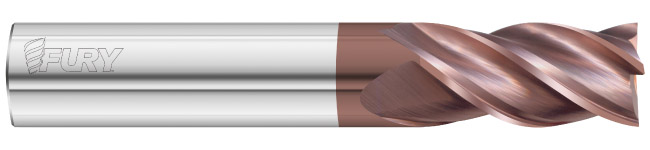

3500 Fury full length
03
Drill Edge provides a stronger flute and aids chip evacuation.
04
Protected Corner prevents premature breakdown of a corner radius.
The Fury Lineup/ 263 tools
Varies by Size
Cutting & Shank Diameter
0.1181"TO1.0000"
Flute Length
0.2362"TO3.2500"
Overall Length
1.4961"TO6.0000"
Radius
0.0098"TO0.2500"
Consistent Across the Series
GradeHigh Performance
Flutes4
Spiral DirectionRight Hand Spiral
Helix AngleVariable
Cutting TypeCenter
Shank Toleranceh6
Cutting Tolerance+.0000"/-.002"
Weldon FlatAvailable
CoatingFC20
Built to CutHHardened Steels > 48 RCKCast IronMStainless SteelsNBrass & CopperPSteelsSSuper Alloys (Nickel based, Inconel)

Filter by diameter, length, coating and more — then check live pricing.

Explore this series

Resources

Access the information you need to put the Fury to work.

Every 3500 EDP

263 EDPs in the Fury
EDPDiameterLengthFlute lengthOverall lengthOpen
350031/8"Stub1/4"1-1/2"
350041/8"Standard1/2"2"
350093/16"Stub5/16"2"
350103/16"Standard9/16"2-1/2"
350113/16"Extra-Long3/4"2-1/2"
350171/4"Stub3/8"2"
350181/4"Standard1/2"2-1/2"
350191/4"Standard3/4"2-1/2"
350201/4"Extra-Long1"3"
350235/16"Standard3/4"2-1/2"
350283/8"Stub1/2"2-1/2"
350293/8"Standard3/4"2-1/2"
350303/8"Standard1"3"
350313/8"Extra-Long1-1/4"3"
350323/8"Extra-Long1-1/2"3-1/2"
350441/2"Stub5/8"2-1/2"
350451/2"Standard1"3"
350471/2"Standard1-1/4"3"
350481/2"Standard1-5/8"4"
350491/2"Extra-Long2"4"
350515/8"Stub3/4"3-1/2"
350653/4"Stub1"3"
350663/4"Standard1-1/2"4"
350683/4"Standard2"5"
350891"Extra-Long3-1/4"6"
EDPDiameterLengthFlute lengthOverall lengthOpen
350003 mmStub6 mm38 mm
350013 mmStandard10 mm38 mm
350064 mmStub8 mm50 mm
350074 mmStandard12 mm50 mm
355615 mmStub10 mm51 mm
355665 mmStandard16 mm64 mm
350136 mmStandard12 mm64 mm
350146 mmStandard20 mm64 mm
350156 mmExtra-Long24 mm76 mm
350268 mmStandard20 mm64 mm
355738 mmExtra-Long32 mm100 mm
3503410 mmStandard25 mm64 mm
3503610 mmExtra-Long40 mm100 mm
3503812 mmStandard26 mm84 mm
3504012 mmStandard32 mm84 mm
3507925 mmStub32 mm100 mm
EDPDiameterLengthFlute lengthOverall lengthRadiusOpen
350961/8"Stub1/4"1-1/2"0.0100"
351471/8"Stub1/4"1-1/2"0.0200"
350971/8"Standard1/2"2"0.0100"
351481/8"Standard1/2"2"0.0200"
351023/16"Stub5/16"2"0.0100"
351533/16"Stub5/16"2"0.0200"
351983/16"Stub5/16"2"0.0300"
351033/16"Standard9/16"2-1/2"0.0100"
351543/16"Standard9/16"2-1/2"0.0200"
351993/16"Standard9/16"2-1/2"0.0300"
351043/16"Extra-Long3/4"2-1/2"0.0100"
352003/16"Extra-Long3/4"2-1/2"0.0300"
351101/4"Stub3/8"2"0.0100"
351611/4"Stub3/8"2"0.0200"
352061/4"Stub3/8"2"0.0300"
353051/4"Stub3/8"2"0.0600"
351111/4"Standard1/2"2-1/2"0.0100"
351621/4"Standard1/2"2-1/2"0.0200"
352071/4"Standard1/2"2-1/2"0.0300"
351121/4"Standard3/4"2-1/2"0.0100"
351631/4"Standard3/4"2-1/2"0.0200"
352081/4"Standard3/4"2-1/2"0.0300"
353071/4"Standard3/4"2-1/2"0.0600"
351131/4"Extra-Long1"3"0.0100"
351641/4"Extra-Long1"3"0.0200"
352091/4"Extra-Long1"3"0.0300"
353081/4"Extra-Long1"3"0.0600"
351155/16"Stub1/2"2"0.0100"
351165/16"Standard3/4"2-1/2"0.0100"
351675/16"Standard3/4"2-1/2"0.0200"
352125/16"Standard3/4"2-1/2"0.0300"
351175/16"Extra-Long1"3"0.0100"
351685/16"Extra-Long1"3"0.0200"
351213/8"Stub1/2"2-1/2"0.0100"
35172W3/8"Stub1/2"2-1/2"0.0200"
351723/8"Stub1/2"2-1/2"0.0200"
352173/8"Stub1/2"2-1/2"0.0300"
353163/8"Stub1/2"2-1/2"0.0600"
353813/8"Stub1/2"2-1/2"0.0900"
351223/8"Standard3/4"2-1/2"0.0100"
351733/8"Standard3/4"2-1/2"0.0200"
353823/8"Standard3/4"2-1/2"0.0900"
351233/8"Standard1"3"0.0100"
351743/8"Standard1"3"0.0200"
35174W3/8"Standard1"3"0.0200"
352193/8"Standard1"3"0.0300"
353183/8"Standard1"3"0.0600"
351243/8"Extra-Long1-1/4"3"0.0100"
351753/8"Extra-Long1-1/4"3"0.0200"
352203/8"Extra-Long1-1/4"3"0.0300"
353193/8"Extra-Long1-1/4"3"0.0600"
351763/8"Extra-Long1-1/2"3-1/2"0.0200"
359987/16"Standard1"2-3/4"0.0150"
351371/2"Stub5/8"2-1/2"0.0100"
351881/2"Stub5/8"2-1/2"0.0200"
352331/2"Stub5/8"2-1/2"0.0300"
353321/2"Stub5/8"2-1/2"0.0600"
354841/2"Stub5/8"2-1/2"0.1200"
351381/2"Standard1"3"0.0100"
351891/2"Standard1"3"0.0200"
352341/2"Standard1"3"0.0300"
353981/2"Standard1"3"0.0900"
354851/2"Standard1"3"0.1200"
351401/2"Standard1-1/4"3"0.0100"
351911/2"Standard1-1/4"3"0.0200"
352361/2"Standard1-1/4"3"0.0300"
353351/2"Standard1-1/4"3"0.0600"
354001/2"Standard1-1/4"3"0.0900"
354871/2"Standard1-1/4"3"0.1200"
351411/2"Standard1-5/8"4"0.0100"
351921/2"Standard1-5/8"4"0.0200"
352371/2"Standard1-5/8"4"0.0300"
353361/2"Standard1-5/8"4"0.0600"
351421/2"Extra-Long2"4"0.0100"
352381/2"Extra-Long2"4"0.0300"
354891/2"Extra-Long2"4"0.1200"
352405/8"Stub3/4"3-1/2"0.0300"
354915/8"Stub3/4"3-1/2"0.1200"
352415/8"Standard1-1/4"3-1/2"0.0300"
353405/8"Standard1-1/4"3-1/2"0.0600"
352435/8"Standard1-5/8"3-1/2"0.0300"
353425/8"Standard1-5/8"3-1/2"0.0600"
352445/8"Extra-Long2"4"0.0300"
354955/8"Extra-Long2"4"0.1200"
354965/8"Extra-Long2-1/2"5"0.1200"
352543/4"Stub1"3"0.0300"
354183/4"Stub1"3"0.0900"
355053/4"Stub1"3"0.1200"
355333/4"Stub1"3"0.2500"
352553/4"Standard1-1/2"4"0.0300"
353543/4"Standard1-1/2"4"0.0600"
355063/4"Standard1-1/2"4"0.1200"
352573/4"Standard2"5"0.0300"
353563/4"Standard2"5"0.0600"
354213/4"Standard2"5"0.0900"
355363/4"Standard2"5"0.2500"
352583/4"Extra-Long2-1/4"5"0.0300"
355373/4"Extra-Long2-1/4"5"0.2500"
352593/4"Extra-Long3-1/4"6"0.0300"
355383/4"Extra-Long3-1/4"6"0.2500"
353731"Stub1-1/4"4"0.0600"
353741"Standard2"4-1/2"0.0600"
353761"Standard2-5/8"5"0.0600"
355281"Standard2-5/8"5"0.1200"
EDPDiameterLengthFlute lengthOverall lengthRadiusOpen
350933 mmStub6 mm38 mm0.25 mm
350943 mmStandard10 mm38 mm0.25 mm
351453 mmStandard10 mm38 mm0.5 mm
350994 mmStub8 mm50 mm0.25 mm
351504 mmStub8 mm50 mm0.5 mm
351954 mmStub8 mm50 mm0.75 mm
351004 mmStandard12 mm50 mm0.25 mm
351964 mmStandard12 mm50 mm0.75 mm
355625 mmStub10 mm51 mm0.25 mm
355635 mmStub10 mm51 mm0.5 mm
355675 mmStandard16 mm64 mm0.25 mm
355705 mmStandard16 mm64 mm1 mm
355715 mmStandard16 mm64 mm1.5 mm
351056 mmStub10 mm50 mm0.25 mm
351566 mmStub10 mm50 mm0.5 mm
352616 mmStub10 mm50 mm1 mm
351576 mmStandard12 mm64 mm0.5 mm
352026 mmStandard12 mm64 mm0.75 mm
353016 mmStandard12 mm64 mm1.5 mm
351076 mmStandard20 mm64 mm0.25 mm
351586 mmStandard20 mm64 mm0.5 mm
352036 mmStandard20 mm64 mm0.75 mm
352636 mmStandard20 mm64 mm1 mm
353026 mmStandard20 mm64 mm1.5 mm
351086 mmExtra-Long24 mm76 mm0.25 mm
353036 mmExtra-Long24 mm76 mm1.5 mm
351188 mmStub12 mm50 mm0.25 mm
351698 mmStub12 mm50 mm0.5 mm
351198 mmStandard20 mm64 mm0.25 mm
352678 mmStandard20 mm64 mm1 mm
353148 mmStandard20 mm64 mm1.5 mm
355808 mmStandard20 mm64 mm2 mm
351208 mmExtra-Long25 mm76 mm0.25 mm
352688 mmExtra-Long25 mm76 mm1 mm
3512610 mmStub12 mm50 mm0.25 mm
3512710 mmStandard25 mm64 mm0.25 mm
3517810 mmStandard25 mm64 mm0.5 mm
3527010 mmStandard25 mm64 mm1 mm
3532210 mmStandard25 mm64 mm1.5 mm
3538710 mmStandard25 mm64 mm2 mm
3557210 mmStandard32 mm76 mm0.25 mm
3517910 mmStandard32 mm76 mm0.5 mm
3512910 mmExtra-Long40 mm100 mm0.25 mm
3527210 mmExtra-Long40 mm100 mm1 mm
3527312 mmStub14 mm63 mm1 mm
3539012 mmStub14 mm63 mm2 mm
3547712 mmStub14 mm63 mm3 mm
3513112 mmStandard26 mm84 mm0.25 mm
3518212 mmStandard26 mm84 mm0.5 mm
3522712 mmStandard26 mm84 mm0.75 mm
3527412 mmStandard26 mm84 mm1 mm
3532612 mmStandard26 mm84 mm1.5 mm
3545112 mmStandard26 mm84 mm2.5 mm
3547812 mmStandard26 mm84 mm3 mm
3513312 mmStandard32 mm84 mm0.25 mm
3518412 mmStandard32 mm84 mm0.5 mm
3522912 mmStandard32 mm84 mm0.75 mm
3532812 mmStandard32 mm84 mm1.5 mm
3539312 mmStandard32 mm84 mm2 mm
3527712 mmExtra-Long40 mm100 mm1 mm
3548112 mmExtra-Long40 mm100 mm3 mm
3513512 mmExtra-Long50 mm100 mm0.25 mm
3539512 mmExtra-Long50 mm100 mm2 mm
3525016 mmStandard40 mm89 mm0.75 mm
3528316 mmStandard40 mm89 mm1 mm
3525116 mmExtra-Long50 mm89 mm0.75 mm
3528416 mmExtra-Long50 mm89 mm1 mm
3542520 mmStub25 mm100 mm2 mm
3551520 mmStandard50 mm125 mm3 mm
3536520 mmExtra-Long75 mm150 mm1.5 mm
EDPDiameterLengthFlute lengthOverall lengthOpen
350081/8"Stub1/4"1-1/2"
350161/8"Standard1/2"2"
350433/16"Stub5/16"2"
350463/16"Standard9/16"2-1/2"
350503/16"Extra-Long3/4"2-1/2"
350671/4"Stub3/8"2"
350711/4"Standard1/2"2-1/2"
350741/4"Standard3/4"2-1/2"
350781/4"Extra-Long1"3"
350815/16"Stub1/2"2"
350845/16"Standard3/4"2-1/2"
350875/16"Extra-Long1"3"
350953/8"Stub1/2"2-1/2"
350983/8"Standard3/4"2-1/2"
351013/8"Standard1"3"
351093/8"Extra-Long1-1/4"3"
351143/8"Extra-Long1-1/2"3-1/2"
351831/2"Stub5/8"2-1/2"
351871/2"Standard1"3"
351901/2"Standard1-1/4"3"
351941/2"Standard1-5/8"4"
351971/2"Extra-Long2"4"
352055/8"Stub3/4"3"
352105/8"Standard1-1/4"3-1/2"
352285/8"Standard1-5/8"3-1/2"
352325/8"Extra-Long2"4"
352563/4"Stub1"3"
352603/4"Standard1-1/2"4"
352653/4"Standard2"5"
352753/4"Extra-Long2-1/4"5"
352793/4"Extra-Long3-1/4"6"
353311"Stub1-1/4"4"
353341"Standard2"4-1/2"
353411"Extra-Long3-1/4"6"
EDPDiameterLengthFlute lengthOverall lengthOpen
350053 mmStandard10 mm38 mm
350394 mmStandard12 mm50 mm
355845 mmStandard16 mm64 mm
350536 mmStub10 mm50 mm
350576 mmStandard12 mm64 mm
350918 mmStandard20 mm64 mm
3513910 mmStandard32 mm76 mm
3514912 mmStandard26 mm84 mm
3515212 mmStandard32 mm84 mm
3523916 mmStub20 mm89 mm
3524616 mmStandard40 mm89 mm
3525316 mmExtra-Long63 mm125 mm
3529620 mmExtra-Long75 mm150 mm
3530925 mmStandard63 mm125 mm

Best Applications

How the Fury maps across ISO-513 material groups and machining operations.

RghFinSlotPlngHEM
PSteels
NBrass & Copper
MStainless
KCast Iron
SSuper Alloys
HHardened
Also applicable Titanium
Not suitedCompositesPlastics

Choosing Between the Fury & Fury Vicor

The 3500 Fury is designed for stable, high-performance milling across a broad material range — including cast iron and brass & copper — with ball, corner radius, and square end style options for application flexibility. For applications generating long, stringy chips or requiring extra chip control, consider the 3505 Fury Vicor. Its chip breakers reduce cutting forces and break up chip formation, though it's available only with a corner radius end.

Feature3500 Fury3505 Fury Vicor
MaterialsBrass & copper, cast iron, hardened steels (>48 RC), stainless steels, steels, super alloys, titaniumCast iron, hardened steels, super alloys, stainless steels, steels
Chip controlStandard flute design, no chip breakersChip breakers reduce cutting forces, prevent long stringy chip build-up
End styleBall, Corner Radius, SquareCorner Radius only

Frequently Asked Questions

It's designed for Brass & Copper, Cast Iron, Hardened Steels > 48 RC, Stainless Steels, Steels, Super Alloys (Nickel based, Inconel), and Titanium.

It's stocked with FC20 coating. Our FC20 coating combines high hardness, elasticity, oxidation resistance, and low friction for dependable performance. Excellent for stainless steels and nickel-based high-temperature alloys.

It's available in Ball, Corner Radius, Square.

The 3500 Fury is a 4-flute tool.

The 3500 Fury uses a variable helix angle.

The 3500 Fury holds a shank tolerance of h6 and a cutter tolerance of +.0000"/-.002" | +0.00mm/-0.05mm.
